UCFX20D1-

Designations

UCFX20D1

Included products

Bearing	UCX20D1		Bearing
Housing	FX20D1		Housing

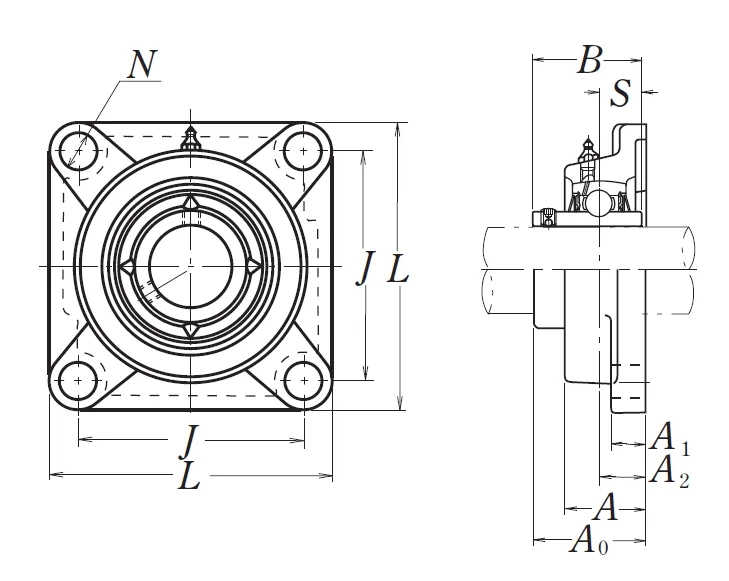

Nominal Dimensions

d	100	mm	Bore diameter
L	268	mm	Overall length
J	211	mm	Distance between attachment bolts
N	31	mm	Diameter of attachment bolt hole
A2	59	mm	Flange width
A1	31	mm	Flange width
A	97	mm	Base width
A0	127.3	mm	Overall width
B,B1,B2	117.5	mm	Width of inner ring
S	49.2	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M27

Bolt size

Basic Load Ratings

Cr	133	kN	Basic dynamic load rating
C0r	105	kN	Basic static load rating

Mass

mass

21

kg

Mass approx.
