CM-UCFS319D1-

Designations

CM-UCFS319D1

Included products

Bearing	UC319D1		Bearing
Housing	FS319D1		Housing

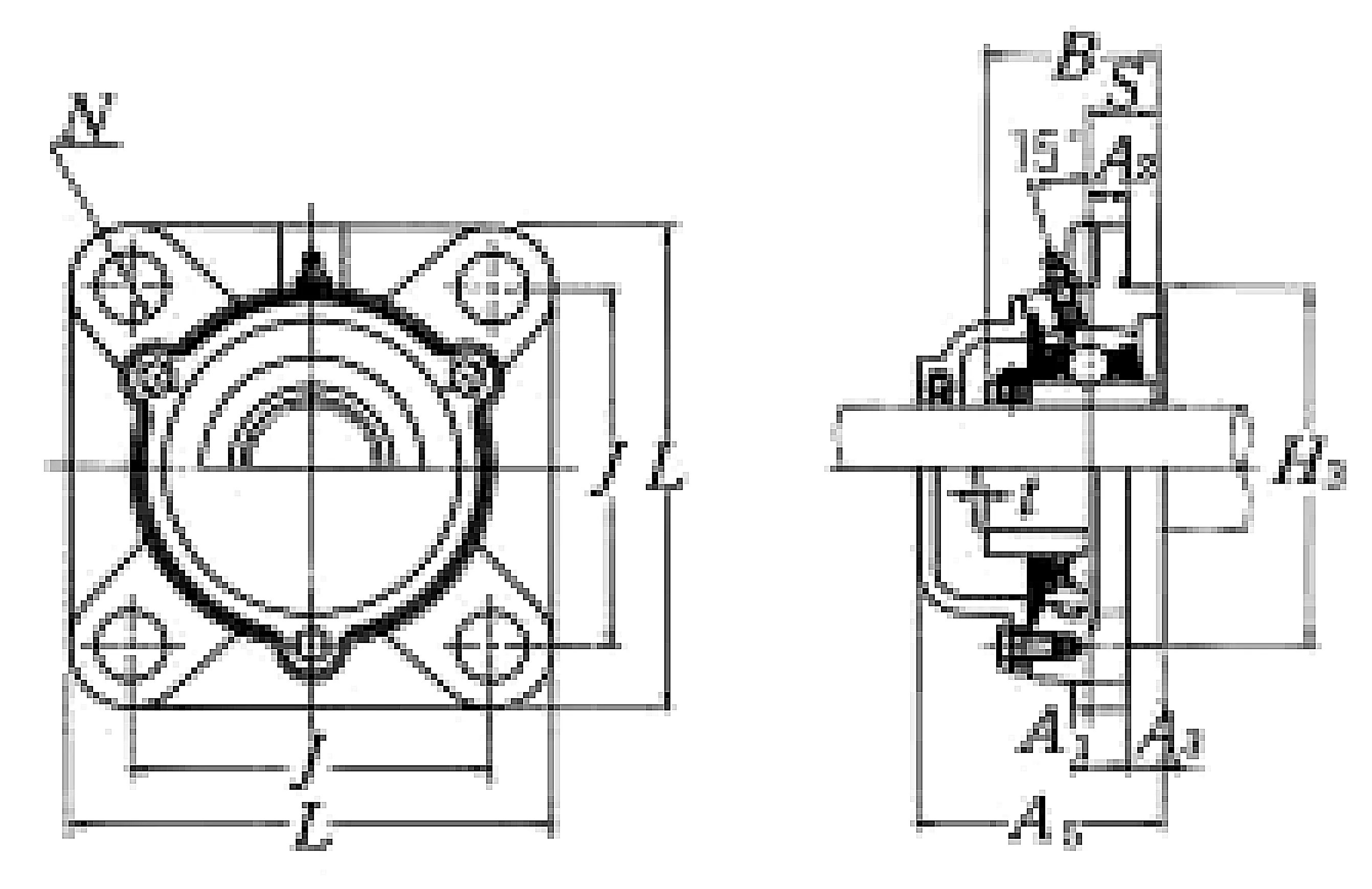

Nominal Dimensions

d	95	mm	Bore diameter
L	290	mm	Overall length
H3	250	mm	Outer diameter of Spigot Joint
J	228	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	39	mm	Flange width
A1	30	mm	Flange width
A5	149	mm	Width including end cover
B,B1,B2	103	mm	Width of inner ring
t	5	mm	Clearance
S	41	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M30

Bolt size

Basic Load Ratings

Cr	153	kN	Basic dynamic load rating
C0r	119	kN	Basic static load rating

Mass

mass

28

kg

Mass approx.
