UCFS310D1-

Designations

UCFS310D1

Included products

Bearing	UC310D1		Bearing
Housing	FS310D1		Housing

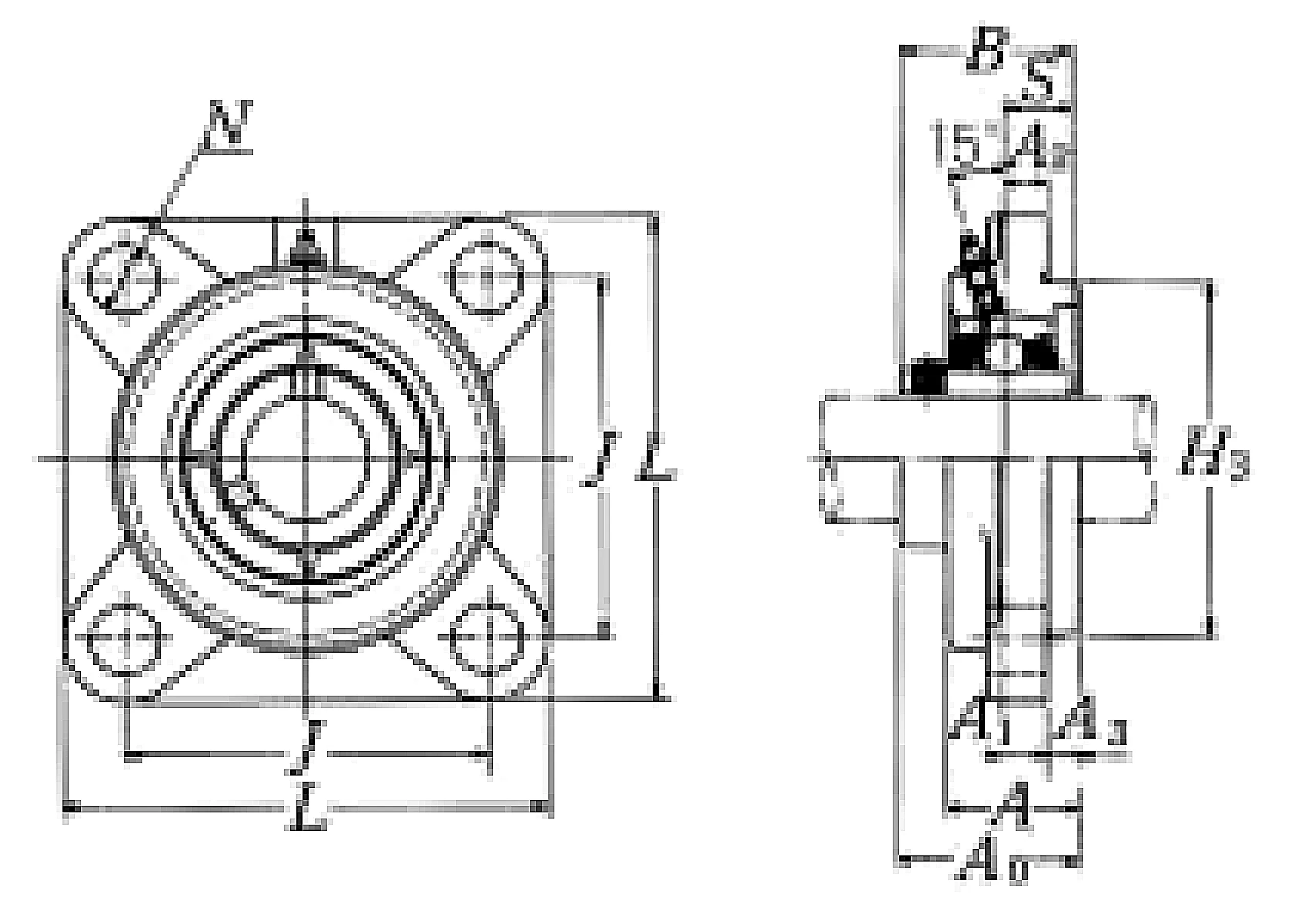

Nominal Dimensions

d	50	mm	Bore diameter
L	175	mm	Overall length
H3	140	mm	Outer diameter of Spigot Joint
J	132	mm	Distance between attachment bolts
A3	12	mm	Height of of Spigot Joint
A2	16	mm	Flange width
A1	19	mm	Flange width
A	48	mm	Base width
A0	67	mm	Overall width
B,B1,B2	61	mm	Width of inner ring
S	22	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	38.5	kN	Basic static load rating

Mass

mass

5

kg

Mass approx.
