CM-UCF310D1-

Designations

CM-UCF310D1

Included products

Bearing	UC310D1		Bearing
Housing	F310D1		Housing

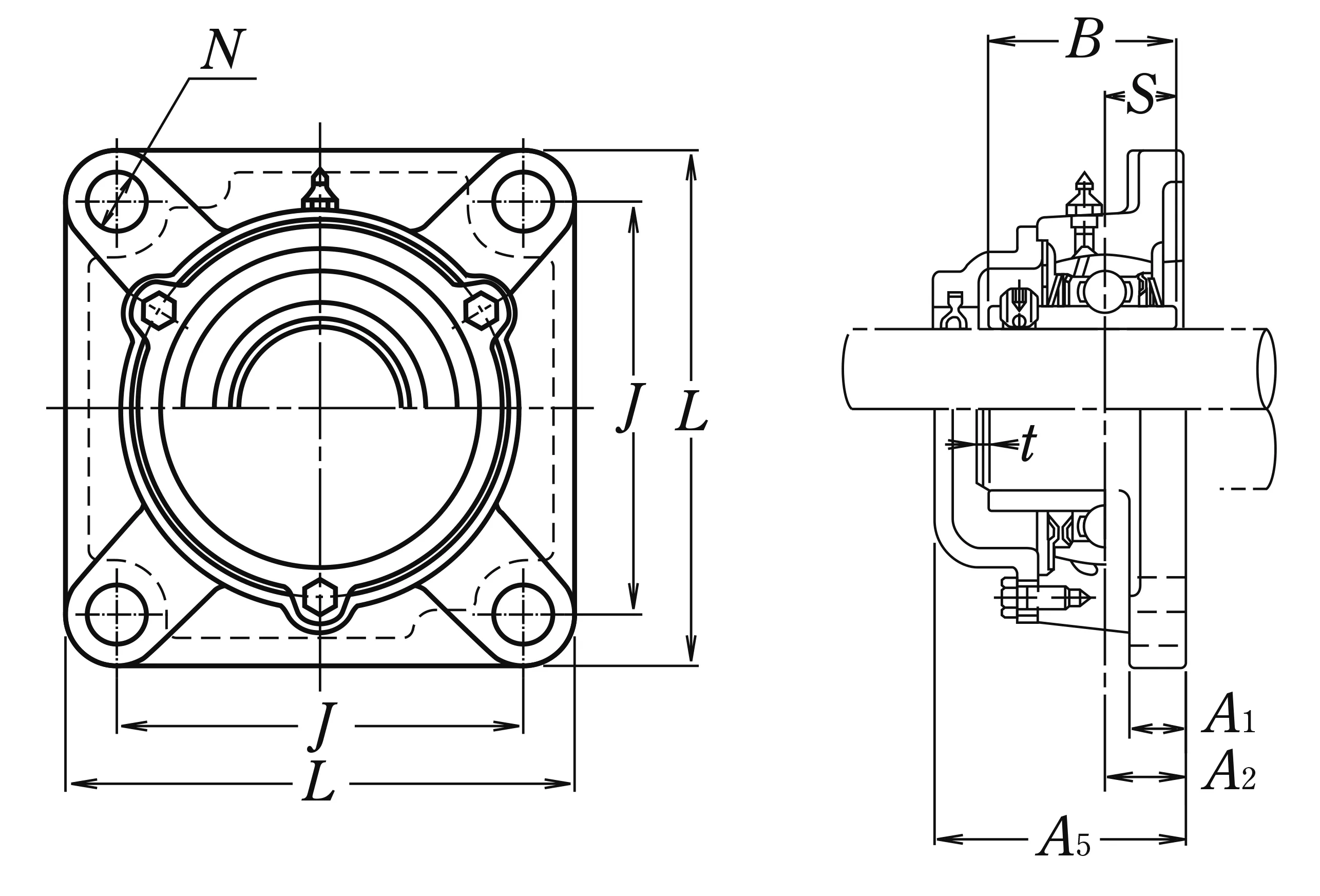

Nominal Dimensions

d	50	mm	Bore diameter
L	175	mm	Overall length
J	132	mm	Distance between attachment bolts
N	23	mm	Diameter of attachment bolt hole
A2	28	mm	Flange width
A1	19	mm	Flange width
A5	88	mm	Width including end cover
A0	67	mm	Overall width
B,B1,B2	61	mm	Width of inner ring
t	3	mm	Clearance
S	22	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	38.5	kN	Basic static load rating

Mass

mass

5.8

kg

Mass approx.
