C-UCFS310D1-

Designations

C-UCFS310D1

Included products

Bearing	UC310D1		Bearing
Housing	FS310D1		Housing

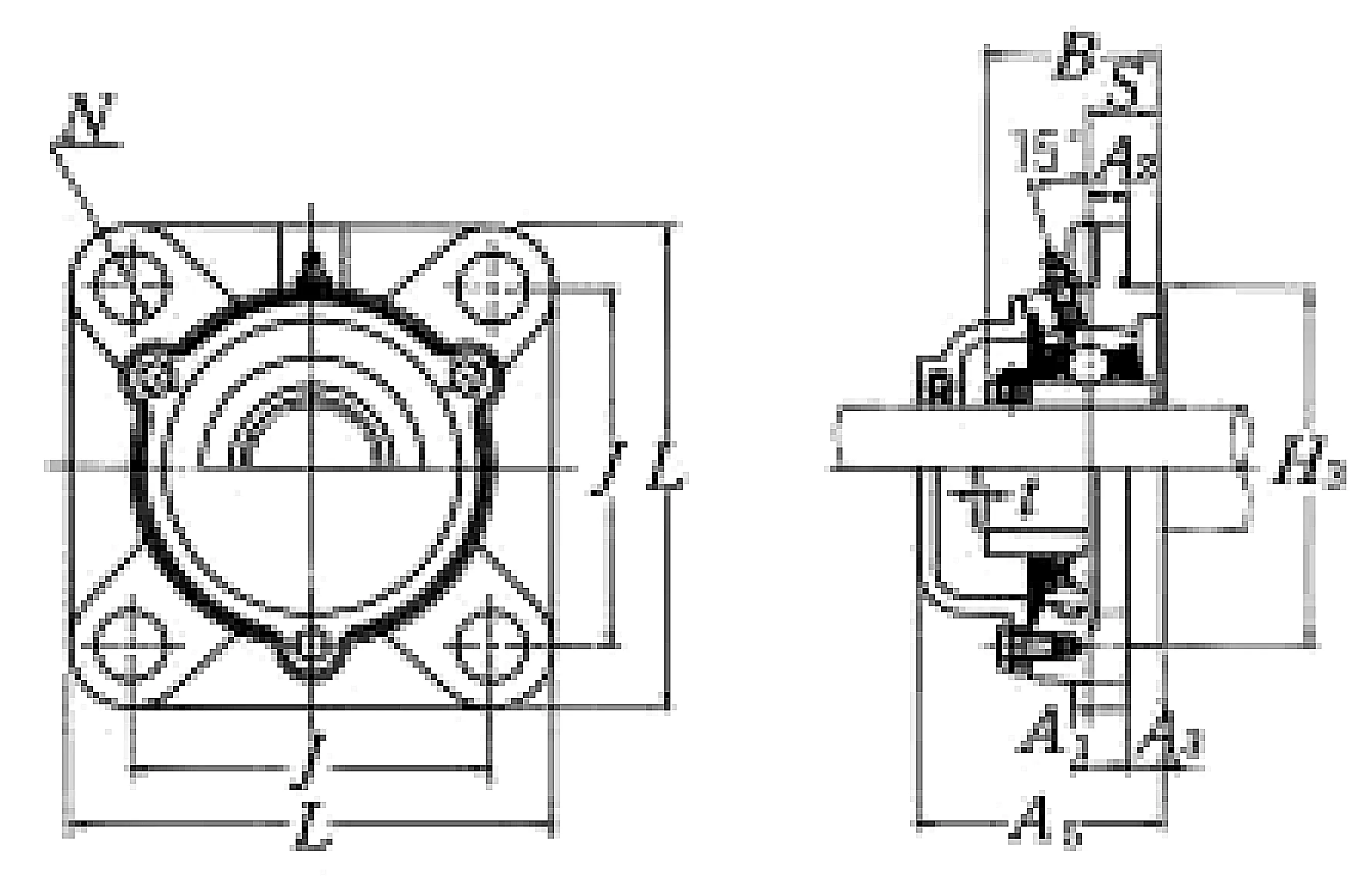

Nominal Dimensions

d	50	mm	Bore diameter
L	175	mm	Overall length
H3	140	mm	Outer diameter of Spigot Joint
J	132	mm	Distance between attachment bolts
A3	12	mm	Height of of Spigot Joint
A2	16	mm	Flange width
A1	19	mm	Flange width
A5	88	mm	Width including end cover
B,B1,B2	61	mm	Width of inner ring
t	3	mm	Clearance
S	22	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	62	kN	Basic dynamic load rating
C0r	38.5	kN	Basic static load rating

Mass

mass

6.2

kg

Mass approx.
