UKIP317D1-

Designations

UKIP317D1

Included products

Bearing	UK317D1		Bearing
Housing	IP317D1		Housing

Associated products

Adapter sleeve

H2317X

Adapter sleeve

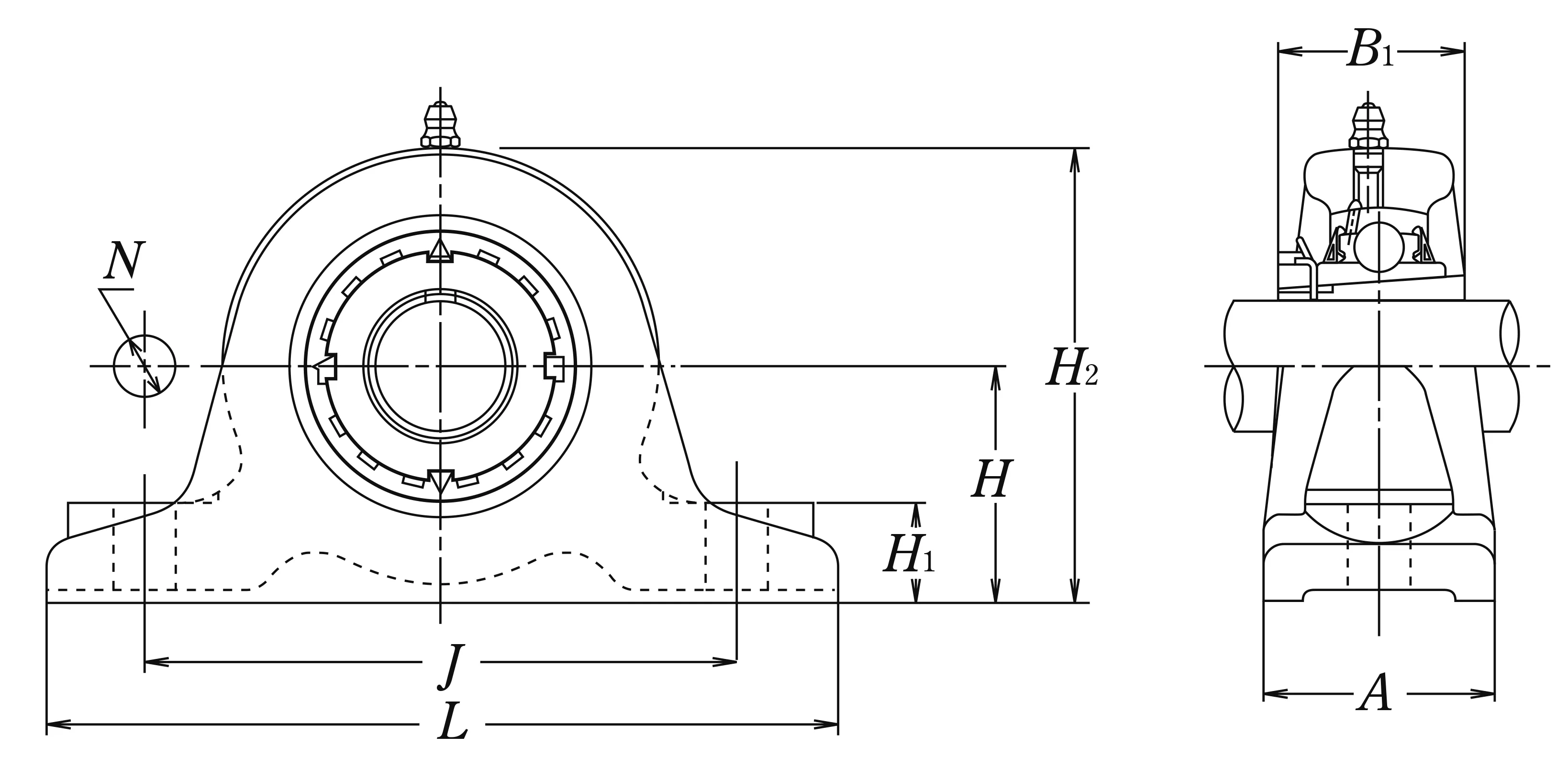

Nominal Dimensions

d	75	mm	Bore diameter
L	370	mm	Overall length
H	130	mm	Height of spherical seat centre
J	310	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A	85	mm	Base width
H1	40	mm	Distance between bottoms of piloting grooves
B1	82	mm	Width of inner ring
H2	255	mm	Overall height

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	133	kN	Basic dynamic load rating
C0r	97	kN	Basic static load rating

Mass

mass

24

kg

Mass approx.
