UCPG216D1-

Designations

UCPG216D1

Included products

Bearing	UC216D1		Bearing
Housing	PG216D1		Housing

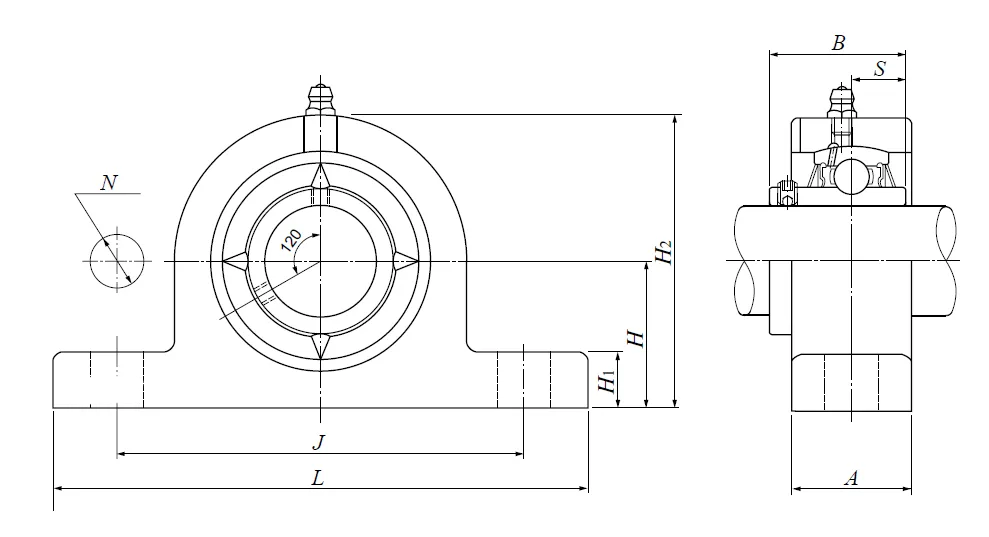

Nominal Dimensions

d	80	mm	Bore diameter
L	292	mm	Overall length
H	88.9	mm	Height of spherical seat centre
J	232	mm	Distance between attachment bolts
N	24	mm	Diameter of attachment bolt hole
A	60	mm	Base width
H1	30	mm	Distance between bottoms of piloting grooves
B	82.6	mm	Width of inner ring
S	33.3	mm	Distance from Opposite side face of locking device to raceway centre
H2	175	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	72.5	kN	Basic dynamic load rating
C0r	53	kN	Basic static load rating

Mass

mass

9

kg

Mass approx.
