UCIP315D1-

Designations

UCIP315D1

Included products

Bearing	UC315D1		Bearing
Housing	IP315D1		Housing

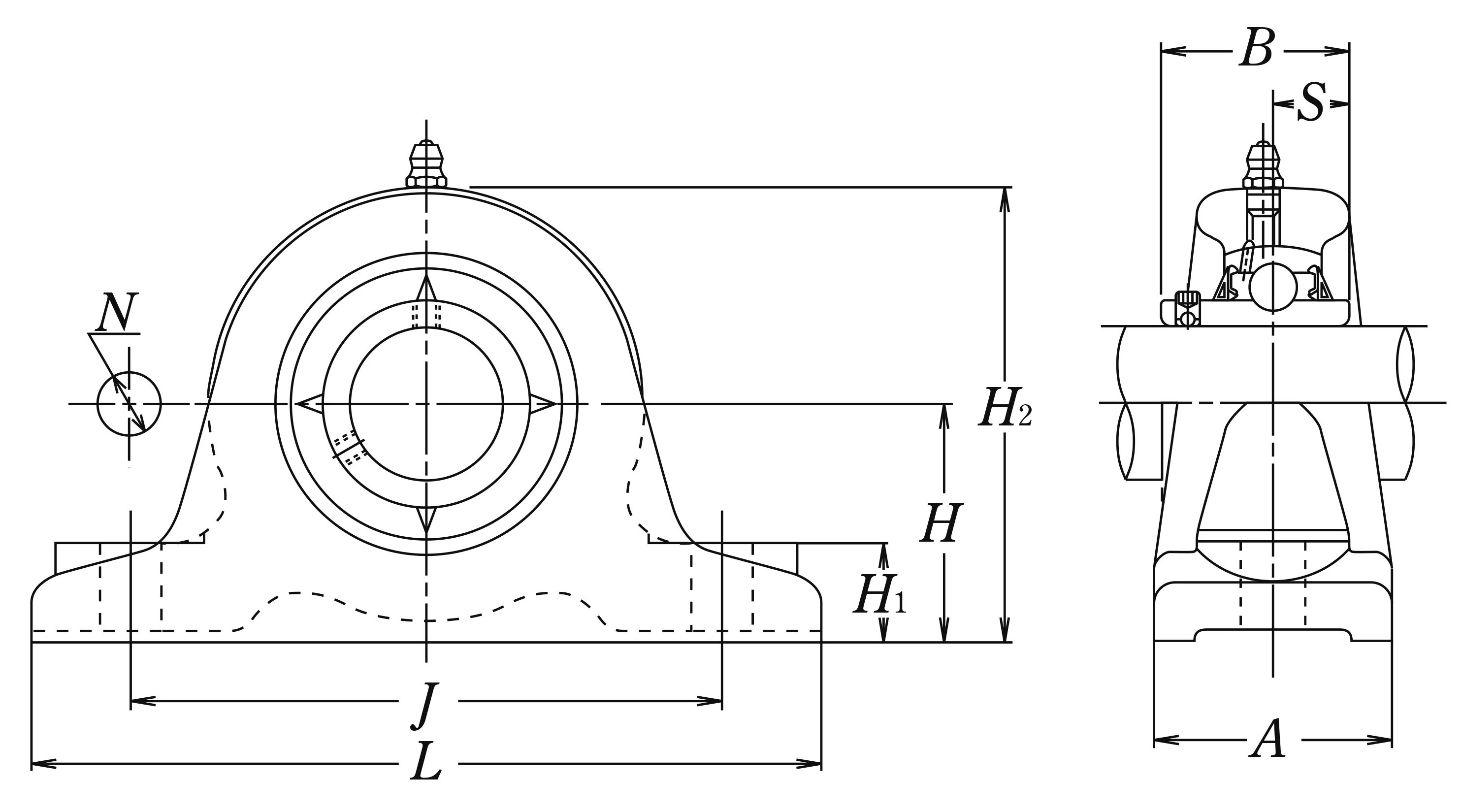

Nominal Dimensions

d	75	mm	Bore diameter
L	340	mm	Overall length
H	120	mm	Height of spherical seat centre
J	280	mm	Distance between attachment bolts
N	25	mm	Diameter of attachment bolt hole
A	75	mm	Base width
H1	35	mm	Distance between bottoms of piloting grooves
B	82	mm	Width of inner ring
S	32	mm	Distance from Opposite side face of locking device to raceway centre
H2	230	mm	Overall height

Mounting information

G

M22

Bolt size

Basic Load Ratings

Cr	113	kN	Basic dynamic load rating
C0r	77	kN	Basic static load rating

Mass

mass

17

kg

Mass approx.
