UKIP212D1-

Designations

UKIP212D1

Included products

Bearing	UK212D1		Bearing
Housing	IP212D1		Housing

Associated products

Adapter sleeve

H2312X

Adapter sleeve

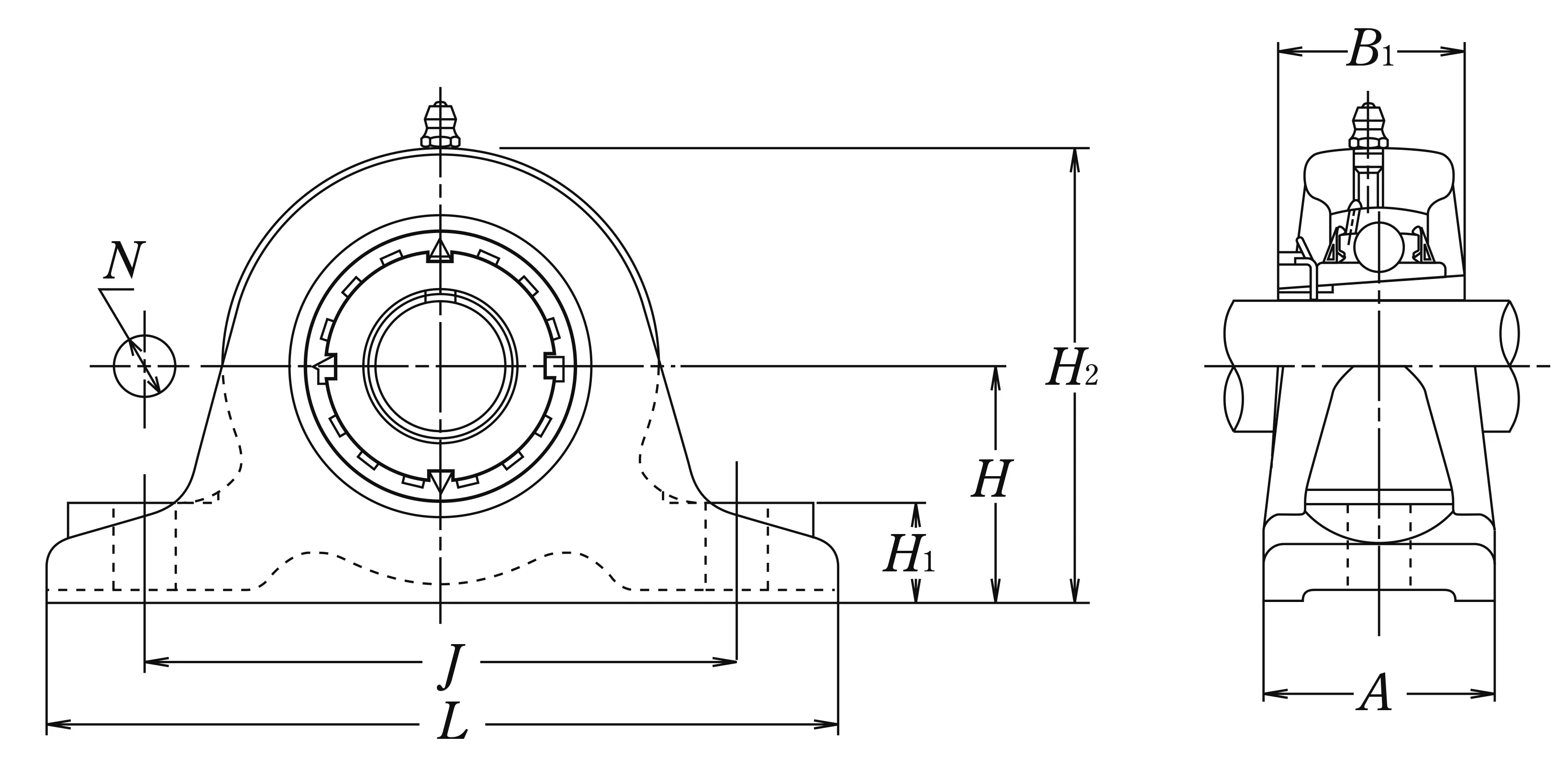

Nominal Dimensions

d	55	mm	Bore diameter
L	260	mm	Overall length
H	80	mm	Height of spherical seat centre
J	200	mm	Distance between attachment bolts
N	22	mm	Diameter of attachment bolt hole
A	70	mm	Base width
H1	30	mm	Distance between bottoms of piloting grooves
B1	62	mm	Width of inner ring
H2	155	mm	Overall height

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

mass

6.7

kg

Mass approx.
