UCPG311D1-

Designations

UCPG311D1

Included products

Bearing	UC311D1		Bearing
Housing	PG311D1		Housing

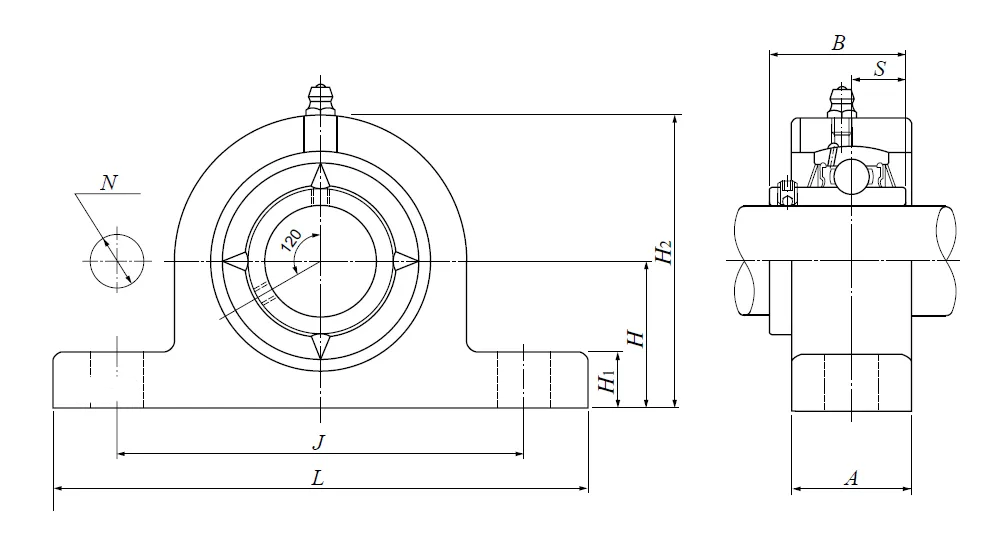

Nominal Dimensions

d	55	mm	Bore diameter
L	310	mm	Overall length
H	80	mm	Height of spherical seat centre
J	236	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	60	mm	Base width
H1	30	mm	Distance between bottoms of piloting grooves
B	66	mm	Width of inner ring
S	25	mm	Distance from Opposite side face of locking device to raceway centre
H2	154	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	71.5	kN	Basic dynamic load rating
C0r	45	kN	Basic static load rating

Mass

mass

7.4

kg

Mass approx.
