UCIP211D1-

Designations

UCIP211D1

Included products

Bearing	UC211D1		Bearing
Housing	IP211D1		Housing

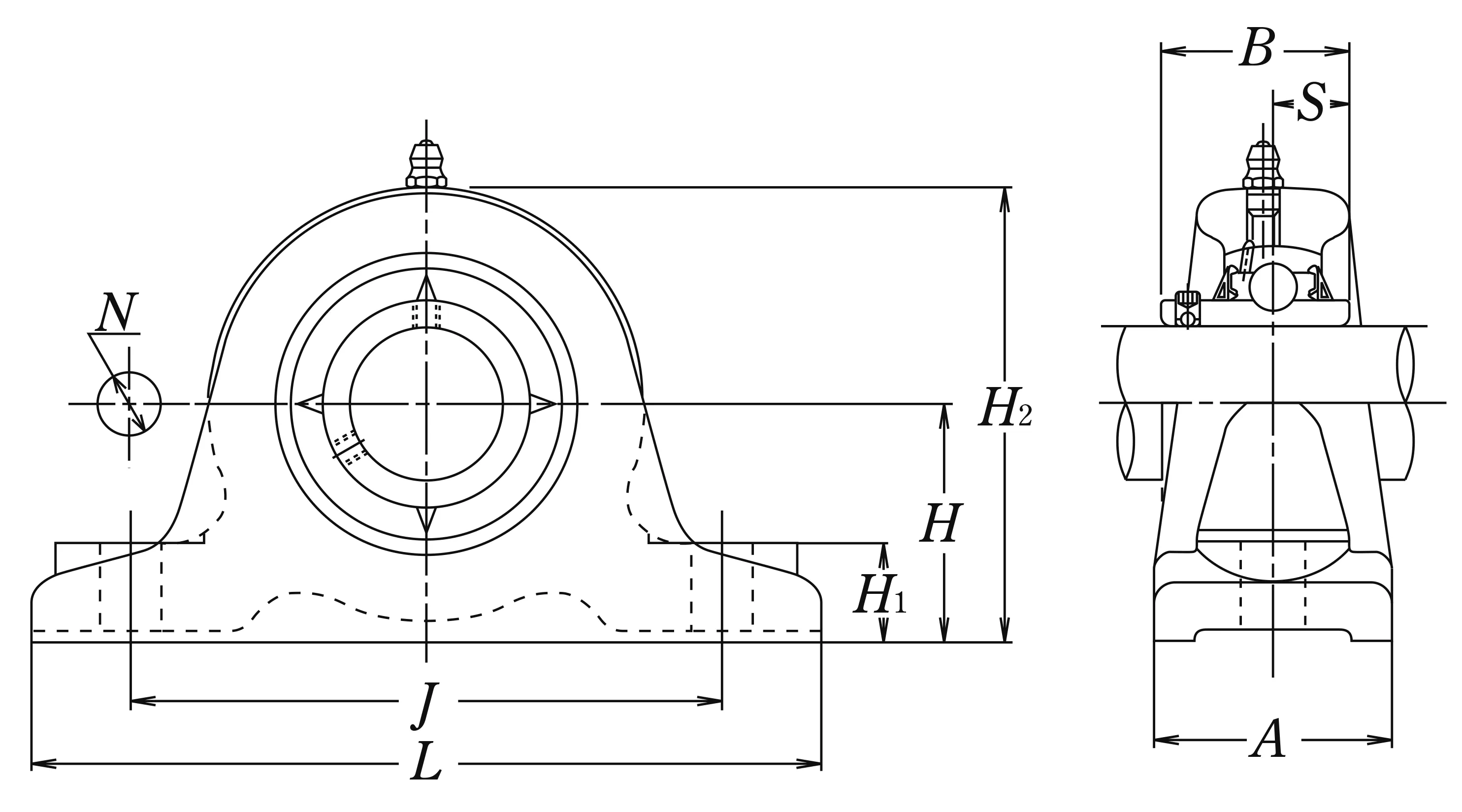

Nominal Dimensions

d	55	mm	Bore diameter
L	230	mm	Overall length
H	80	mm	Height of spherical seat centre
J	180	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A	60	mm	Base width
H1	28	mm	Distance between bottoms of piloting grooves
B	55.6	mm	Width of inner ring
S	22.2	mm	Distance from Opposite side face of locking device to raceway centre
H2	148	mm	Overall height

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	43.5	kN	Basic dynamic load rating
C0r	29.2	kN	Basic static load rating

Mass

mass

5.2

kg

Mass approx.
