UCUP207D1-

Designations

UCUP207D1

Included products

Bearing	UC207D1		Bearing
Housing	UP207D1		Housing

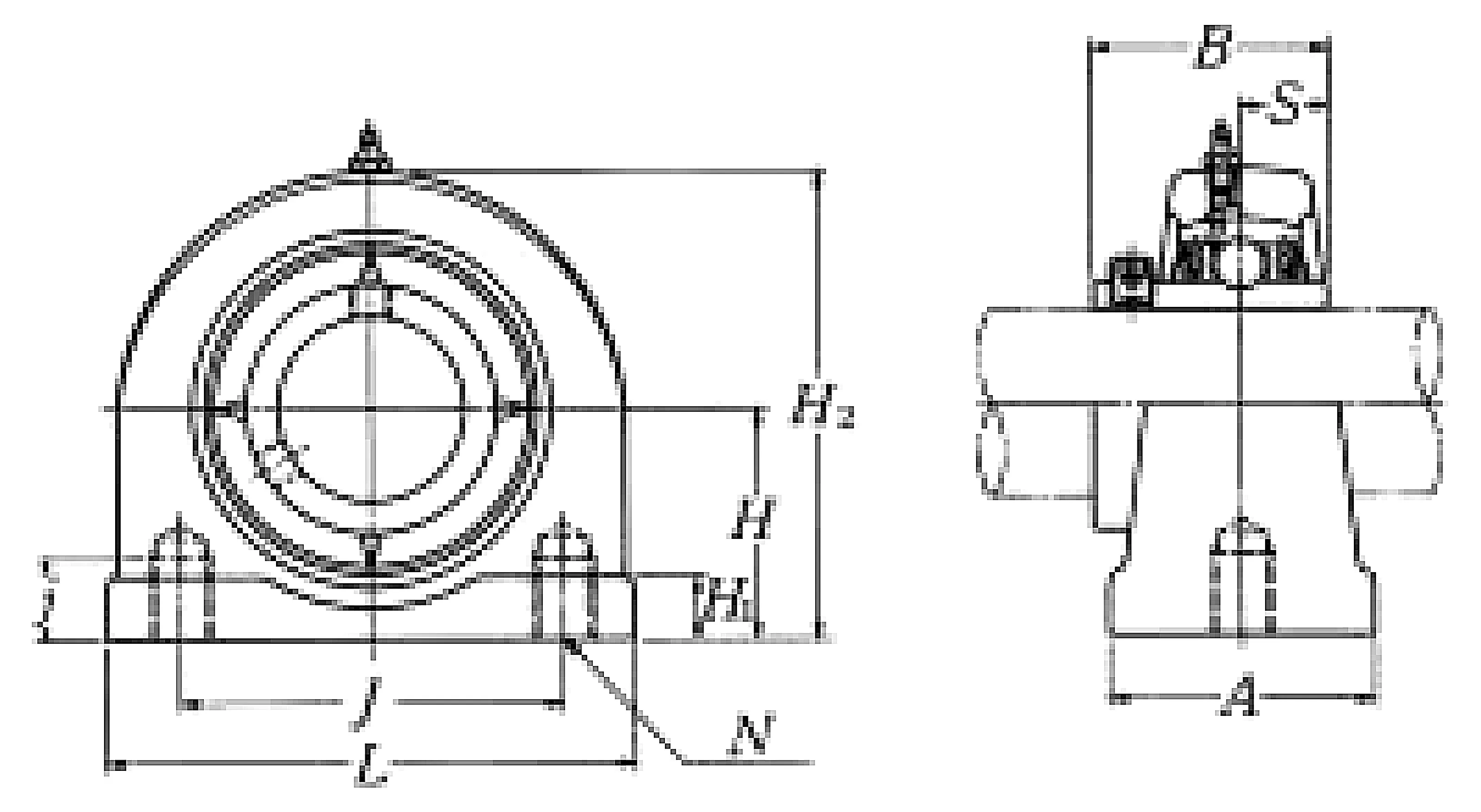

Nominal Dimensions

d	35	mm	Bore diameter
L	110	mm	Overall length
H	47.6	mm	Height of spherical seat centre
J	80	mm	Distance between attachment bolts
A	48	mm	Base width
H1	13	mm	Distance between bottoms of piloting grooves
B	42.9	mm	Width of inner ring
S	17.5	mm	Distance from Opposite side face of locking device to raceway centre
j	20	mm	Thread length
H2	95	mm	Overall height

Mounting information

N

M14×2

Set screw

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

mass

1.6

kg

Mass approx.
