AELPP207-

Designations

AELPP207

Included products

Bearing	AEL207		Bearing
Housing	PP207		Housing

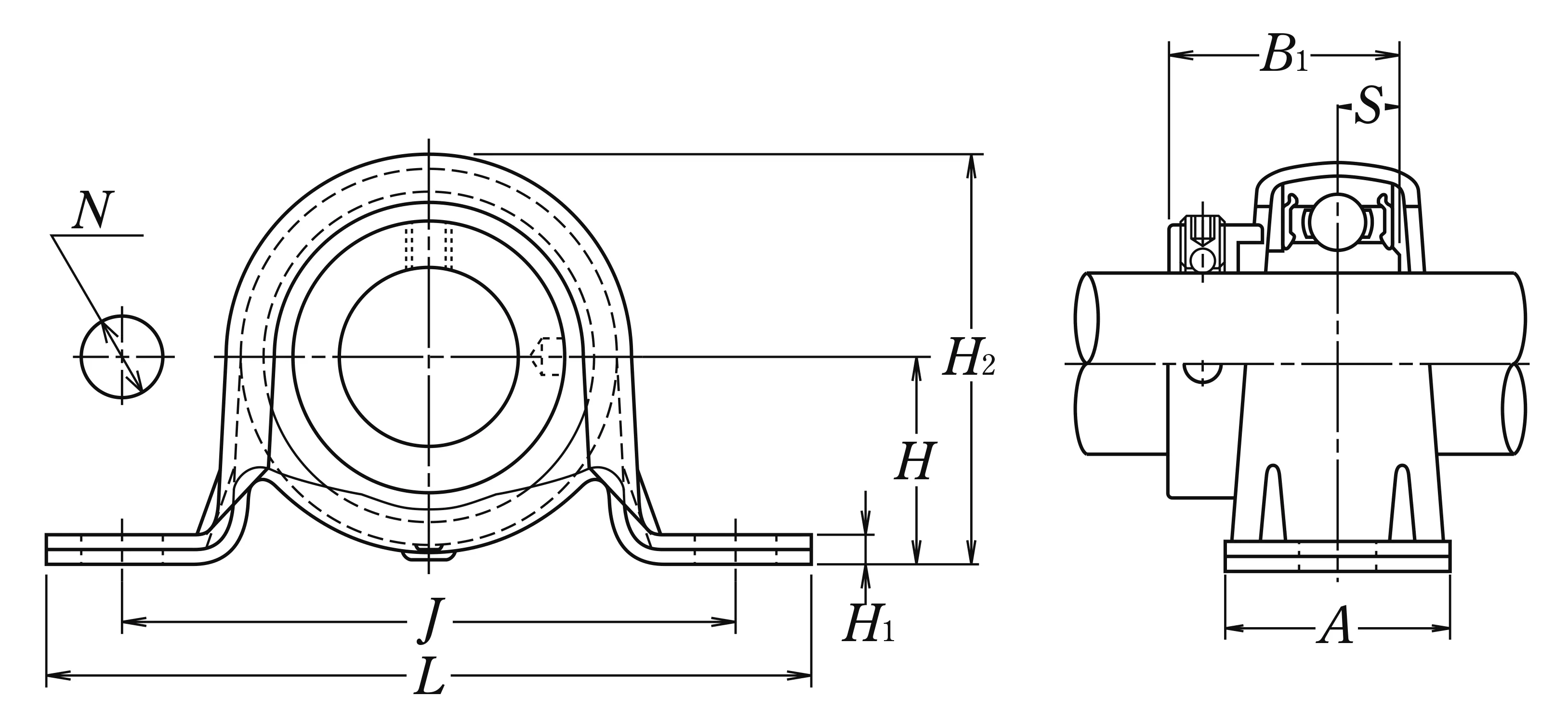

Nominal Dimensions

d	35	mm	Bore diameter
L	129	mm	Overall length
H	39.7	mm	Height of spherical seat centre
J	106	mm	Distance between attachment bolts
N	11.5	mm	Diameter of attachment bolt hole
A	42	mm	Base width
H1	4.6	mm	Distance between bottoms of piloting grooves
B1	38.9	mm	Width of inner ring
S	9.5	mm	Distance from Opposite side face of locking device to raceway centre
H2	78	mm	Overall height

Mounting information

G

M10

Bolt size

Permissible housing load

CR	4.5	kN	Radial
CA	1.8	kN	Axial

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

mass

0.8

kg

Mass approx.
