UCPE207D1-

Designations

UCPE207D1

Included products

Bearing	UC207D1		Bearing
Housing	PE207D1		Housing

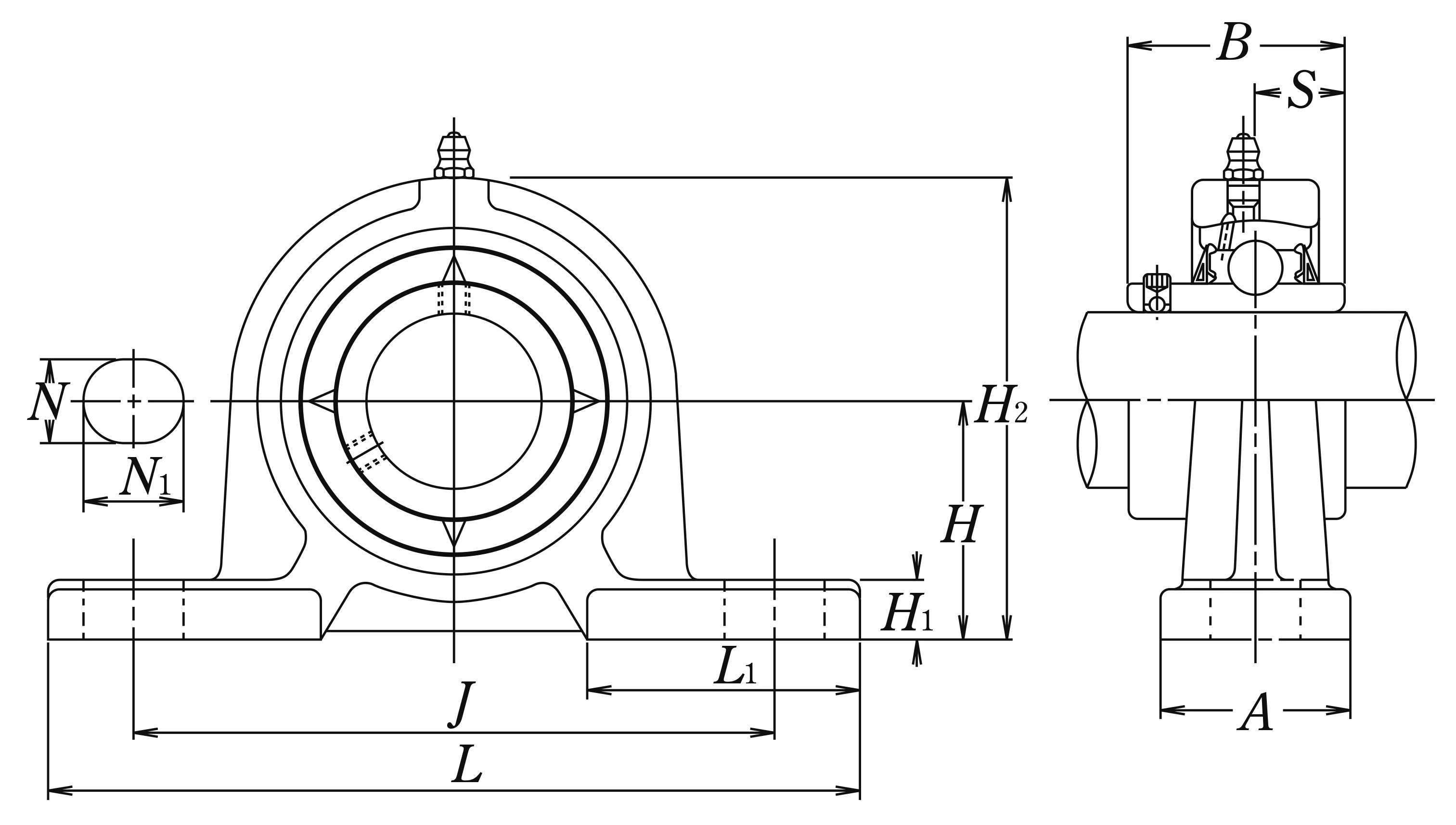

Nominal Dimensions

d	35	mm	Bore diameter
N1	20	mm	Length of attachment bolt hole
L	161	mm	Overall length
H	47.6	mm	Height of spherical seat centre
J	127	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A	38	mm	Base width
H1	12	mm	Distance between bottoms of piloting grooves
B	42.9	mm	Width of inner ring
S	17.5	mm	Distance from Opposite side face of locking device to raceway centre
L1	54	mm	Foot width
H2	92	mm	Overall height

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	25.7	kN	Basic dynamic load rating
C0r	15.3	kN	Basic static load rating

Mass

mass

1.1

kg

Mass approx.
