F-UCFM210/LP99-

Designations

F-UCFM210/LP99

Included products

Bearing	F-UC210D1/LP99		Bearing
Housing	FM210		Housing

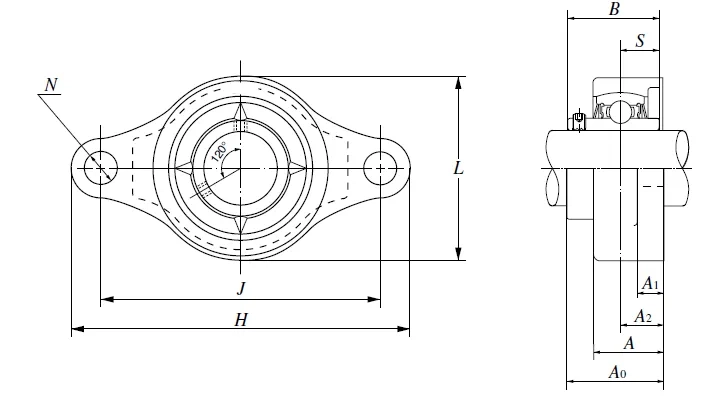

Nominal Dimensions

d	50	mm	Bore diameter
L,L1	115	mm	Overall height
H	189	mm	Height of spherical seat centre
J	157	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	22	mm	Flange width
A1	13	mm	Flange width
A	37	mm	Base width
A0	54.6	mm	Overall width
B,B1,B2	51.6	mm	Width of inner ring
S	19	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	27	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

mass

2.2

kg

Mass approx.
