UCFA210D1-

Designations

UCFA210D1

Included products

Bearing	UC210D1		Bearing
Housing	FA210D1		Housing

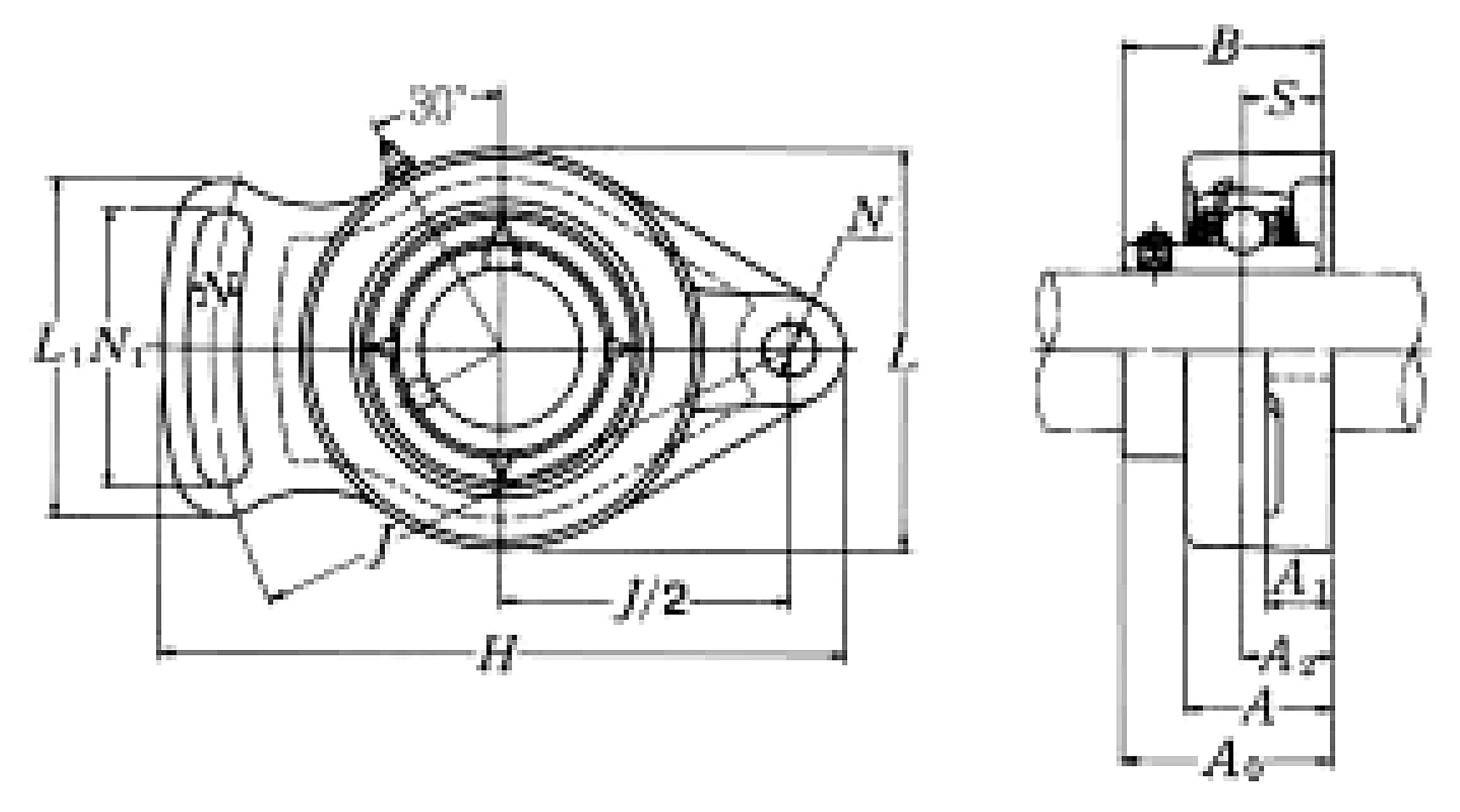

Nominal Dimensions

d	50	mm	Bore diameter
N1	75	mm	Length of attachment bolt hole
L,L1	115	mm	Overall height
J	155	mm	Distance between attachment bolts
N	17	mm	Diameter of attachment bolt hole
A2	22	mm	Flange width
A1	18	mm	Flange width
A	40	mm	Base width
A0	54.6	mm	Overall width
B,B1,B2	51.6	mm	Width of inner ring
H	189	mm	Overall length
S	19	mm	Distance from Opposite side face of locking device to raceway centre
L1	92	mm	Foot width

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

mass

2.2

kg

Mass approx.
