F-UCFM206/LP99-

Designations

F-UCFM206/LP99

Included products

Bearing	F-UC206D1/LP99		Bearing
Housing	FM206		Housing

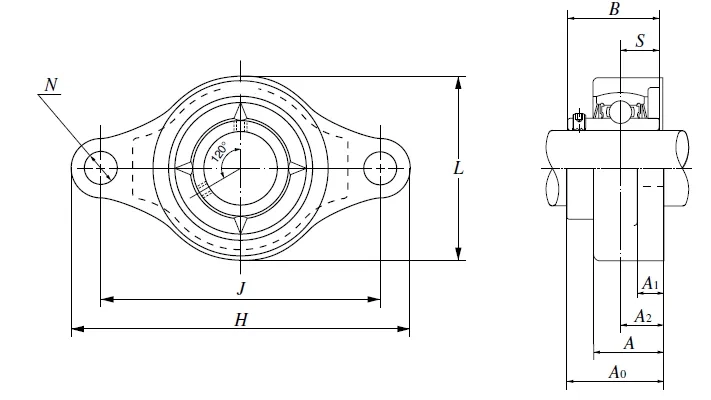

Nominal Dimensions

d	30	mm	Bore diameter
L,L1	80	mm	Overall height
H	145	mm	Height of spherical seat centre
J	117	mm	Distance between attachment bolts
N	16	mm	Diameter of attachment bolt hole
A2	18	mm	Flange width
A1	10	mm	Flange width
A	30	mm	Base width
A0	40.2	mm	Overall width
B,B1,B2	38.1	mm	Width of inner ring
S	15.9	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M14

Bolt size

Basic Load Ratings

Cr	15	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

0.9

kg

Mass approx.
