AELPFL206-

Designations

AELPFL206

Included products

Bearing	AS206		Bearing
Housing	PFL206		Housing

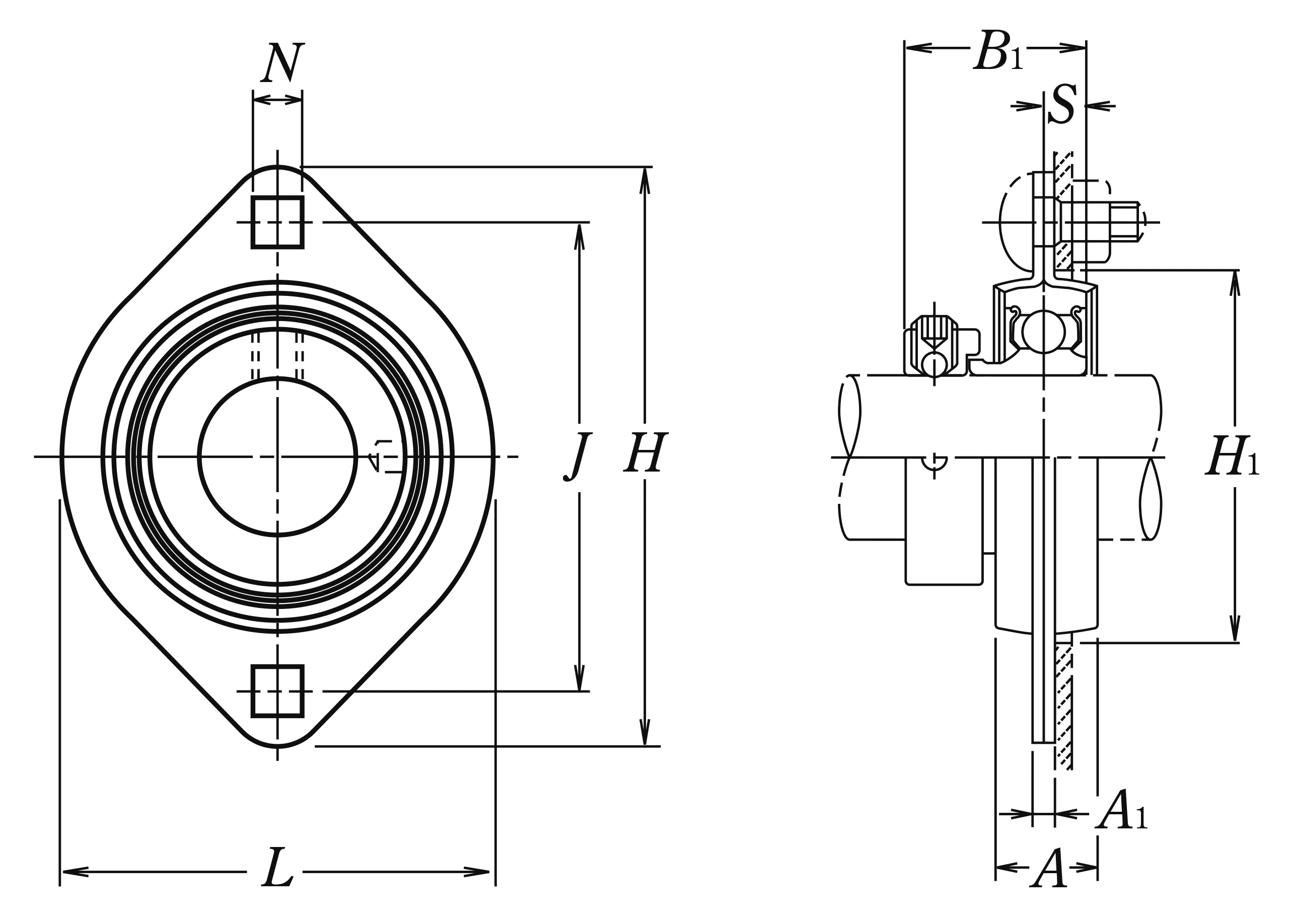

Nominal Dimensions

d	30	mm	Bore diameter
L,L1	84	mm	Overall height
H	113	mm	Height of spherical seat centre
J	90.5	mm	Distance between attachment bolts
N	11	mm	Diameter of attachment bolt hole
A1	5.2	mm	Flange width
A	18	mm	Base width
B,B1,B2	35.7	mm	Width of inner ring
H1	71	mm	Abutment diameter
S	9	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M10

Bolt size

Permissible housing load

CR

5

kN

Radial

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

0.5

kg

Mass approx.
