CSFB206LLU-

Designations

CSFB206LLU

Included products

Bearing	CS206LLU		Bearing
Housing	FB206		Housing

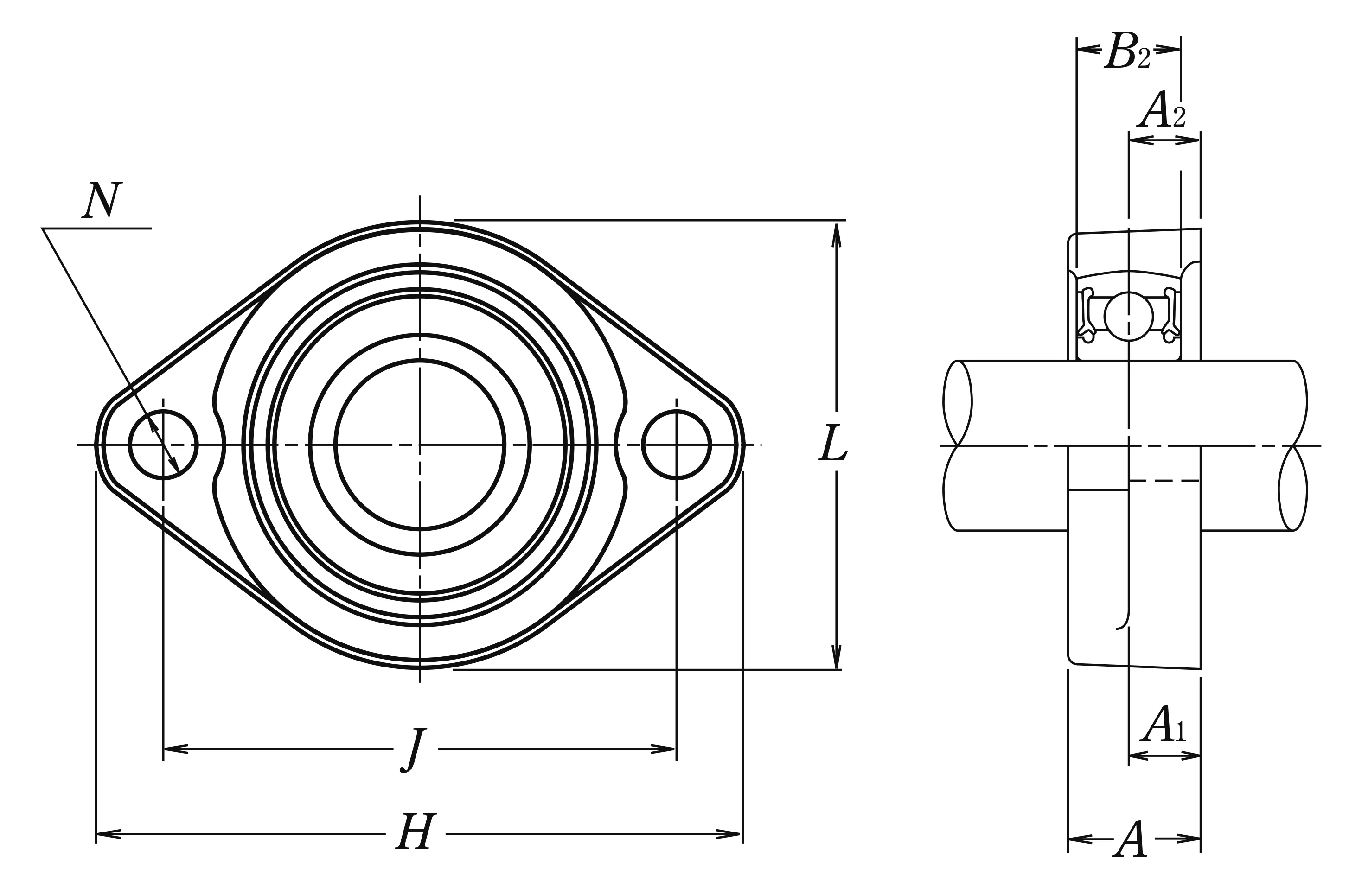

Nominal Dimensions

d	30	mm	Bore diameter
L,L1	76	mm	Overall height
J	90.5	mm	Distance between attachment bolts
N	12	mm	Diameter of attachment bolt hole
A2	12	mm	Flange width
A1	12	mm	Flange width
A	22.5	mm	Base width
B,B1,B2	16	mm	Width of inner ring
H	113	mm	Overall length
S	8	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

0.5

kg

Mass approx.
