UCFH206D1-

Designations

UCFH206D1

Included products

Bearing	UC206D1		Bearing
Housing	FH206D1		Housing

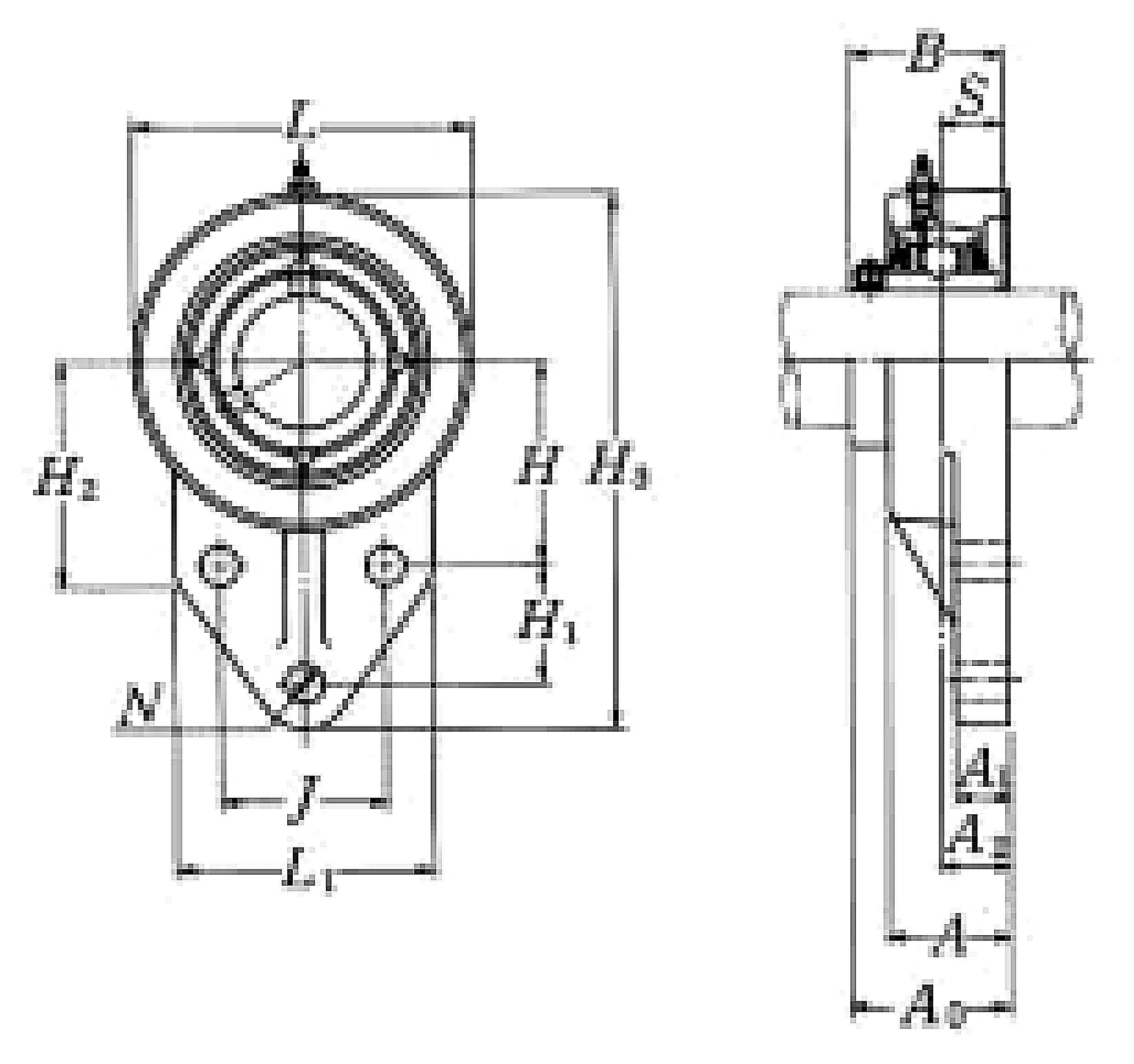

Nominal Dimensions

d	30	mm	Bore diameter
L,L1	78	mm	Overall height
H	50	mm	Height of spherical seat centre
H3	130	mm	Overall height
J	40	mm	Distance between attachment bolts
N	10	mm	Diameter of attachment bolt hole
A2	18	mm	Flange width
A1	13	mm	Flange width
A	31	mm	Base width
A0	40.2	mm	Overall width
B,B1,B2	38.1	mm	Width of inner ring
H1	29	mm	Distance between attachment bolt holes
S	15.9	mm	Distance from Opposite side face of locking device to raceway centre
L1	65	mm	Foot width

Mounting information

G

M8

Bolt size

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

mass

0.9

kg

Mass approx.
