CM-UKFL306D1-

Designations

CM-UKFL306D1

Included products

Bearing	UK306D1		Bearing
Housing	FL306D1		Housing

Associated products

Adapter sleeve

H2306X

Adapter sleeve

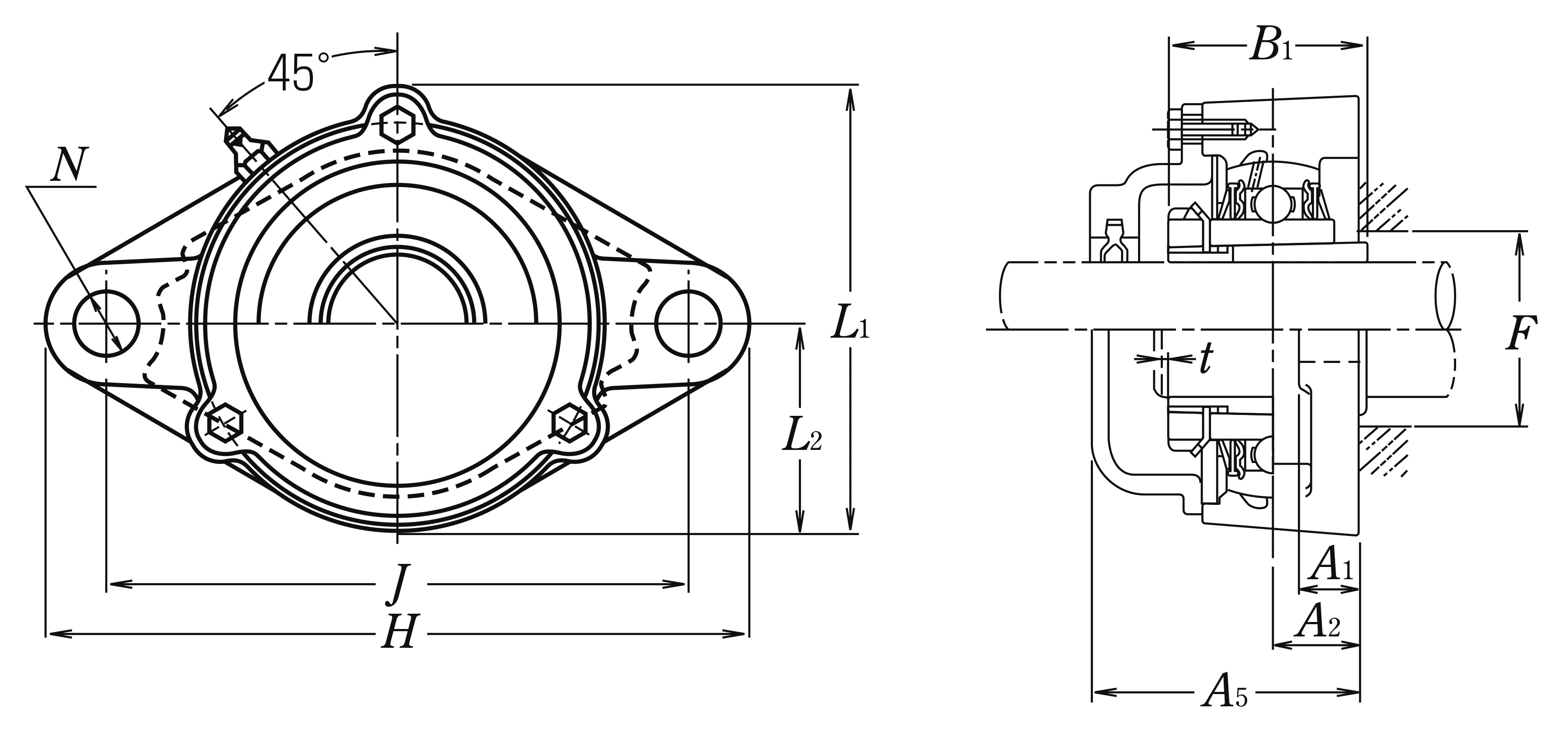

Nominal Dimensions

d	25	mm	Bore diameter
L,L1	101	mm	Overall height
J	134	mm	Distance between attachment bolts
N	18	mm	Diameter of attachment bolt hole
A2	18	mm	Flange width
A1	15	mm	Flange width
A5	60	mm	Width including end cover
B,B1,B2	38	mm	Width of inner ring
t	2	mm	Clearance
H	180	mm	Overall length
L2	45	mm	Height of spherical seat centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	26.7	kN	Basic dynamic load rating
C0r	15	kN	Basic static load rating

Mass

mass

1.8

kg

Mass approx.
