UELFLU205D1-

Designations

UELFLU205D1

Included products

Bearing	UEL205D1		Bearing
Housing	FLU205D1		Housing

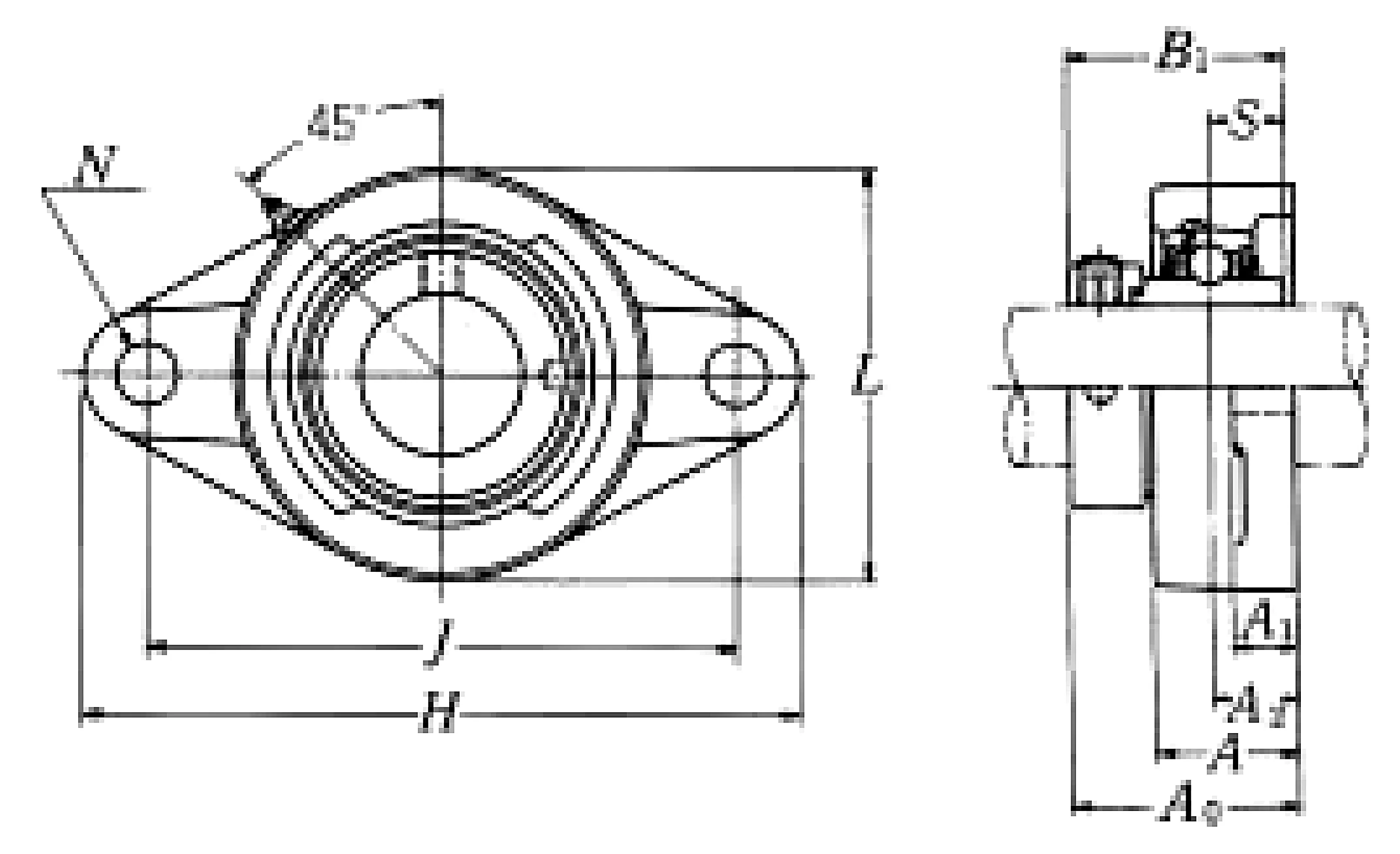

Nominal Dimensions

d	25	mm	Bore diameter
L,L1	70	mm	Overall height
J	99	mm	Distance between attachment bolts
N	11.5	mm	Diameter of attachment bolt hole
A2	19	mm	Flange width
A1	15	mm	Flange width
A	30	mm	Base width
A0	45.9	mm	Overall width
B,B1,B2	44.4	mm	Width of inner ring
H	125	mm	Overall length
S	17.45	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.7

kg

Mass approx.
