UCFA205D1-

Designations

UCFA205D1

Included products

Bearing	UC205D1		Bearing
Housing	FA205D1		Housing

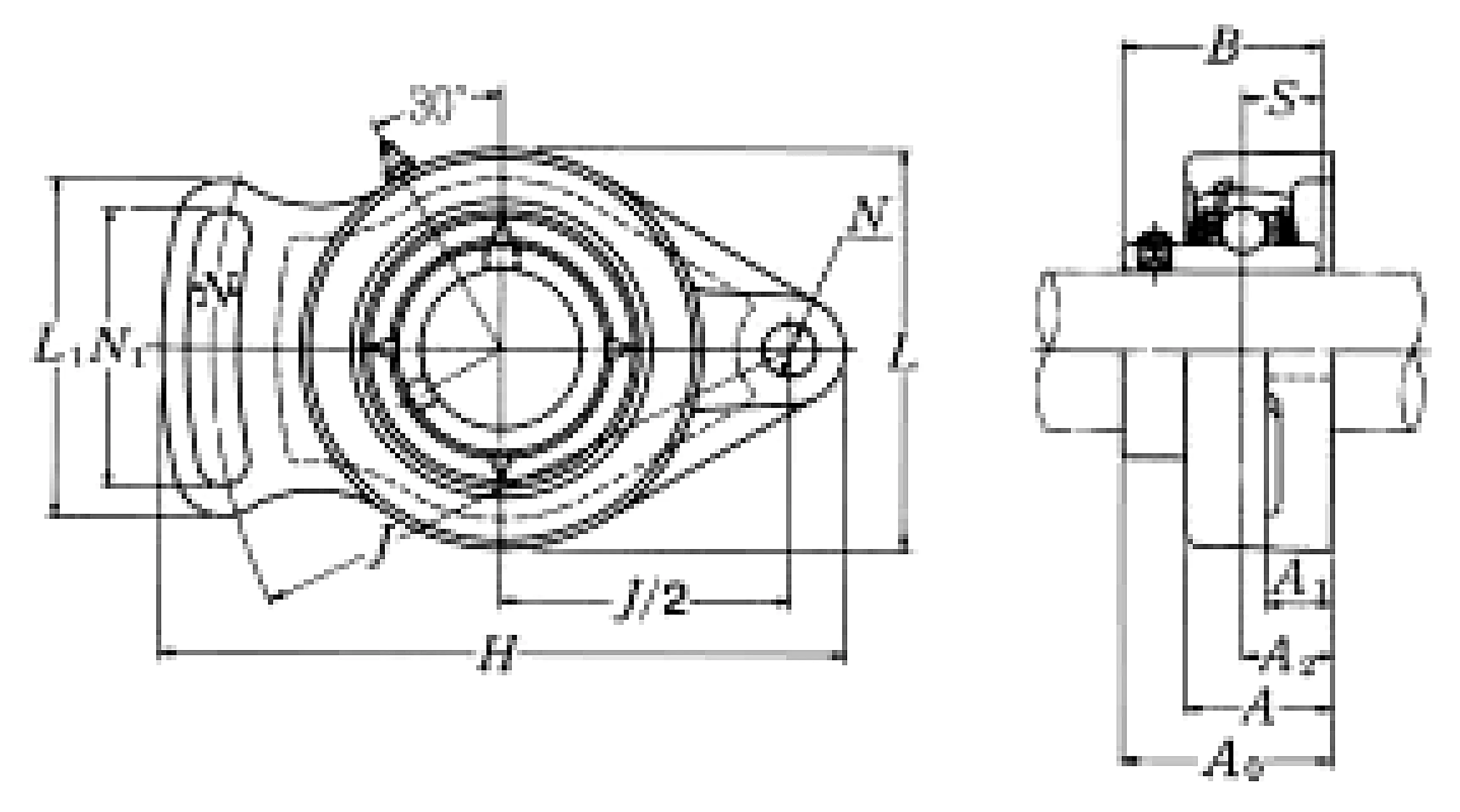

Nominal Dimensions

d	25	mm	Bore diameter
N1	49	mm	Length of attachment bolt hole
L,L1	70	mm	Overall height
J	96	mm	Distance between attachment bolts
N	13	mm	Diameter of attachment bolt hole
A2	15	mm	Flange width
A1	14	mm	Flange width
A	26.5	mm	Base width
A0	34.8	mm	Overall width
B,B1,B2	34.1	mm	Width of inner ring
H	124	mm	Overall length
S	14.3	mm	Distance from Opposite side face of locking device to raceway centre
L1	64	mm	Foot width

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.7

kg

Mass approx.
