AELFB205-

Designations

AELFB205

Included products

Bearing	AEL205		Bearing
Housing	FB205		Housing

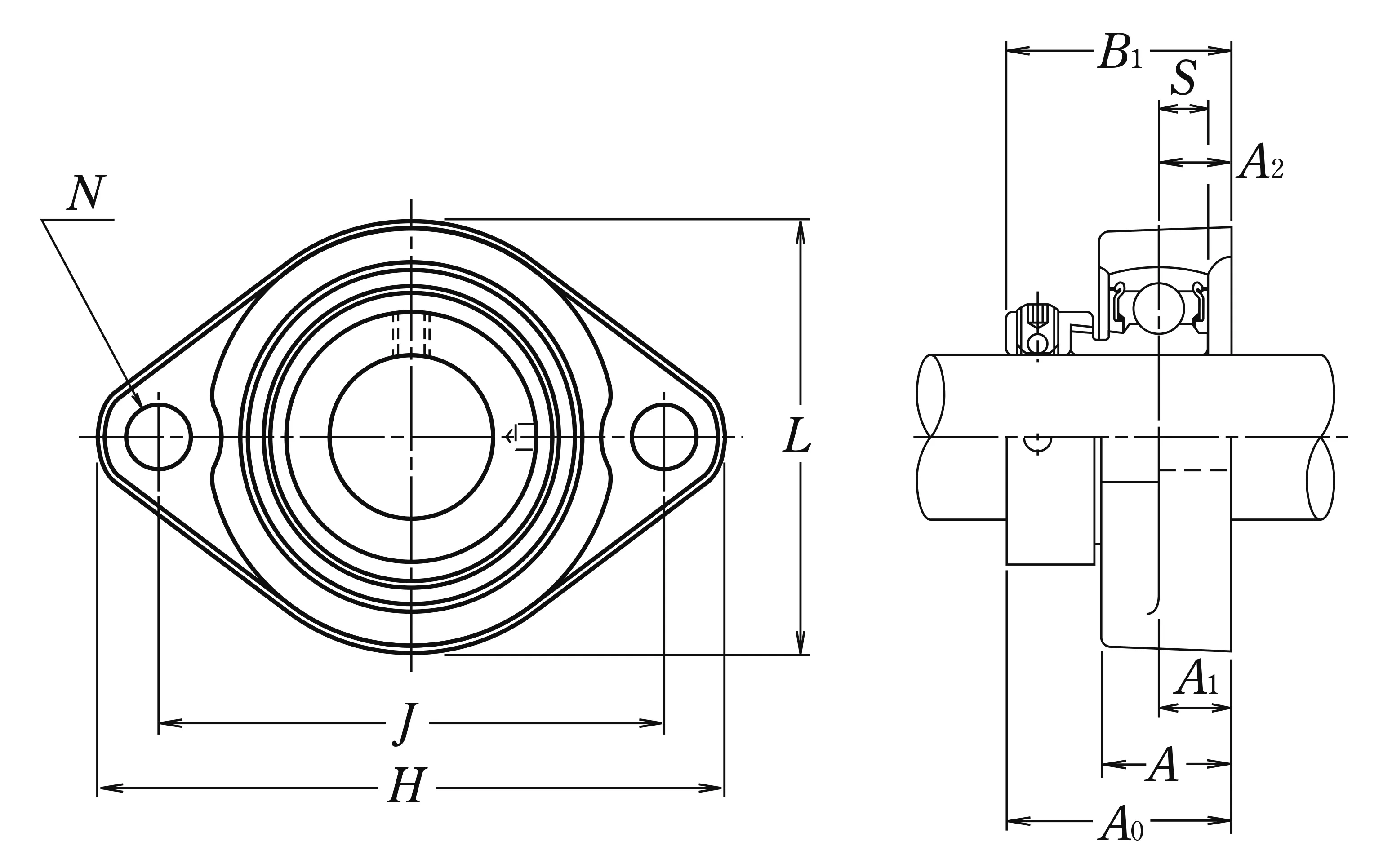

Nominal Dimensions

d	25	mm	Bore diameter
L,L1	64	mm	Overall height
J	76	mm	Distance between attachment bolts
N	10	mm	Diameter of attachment bolt hole
A2	11	mm	Flange width
A1	11	mm	Flange width
A	20	mm	Base width
A0	34.5	mm	Overall width
B,B1,B2	31	mm	Width of inner ring
H	95	mm	Overall length
S	7.5	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M8

Bolt size

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.4

kg

Mass approx.
