AELPFL205-

Designations

AELPFL205

Included products

Bearing	AS205		Bearing
Housing	PFL205		Housing

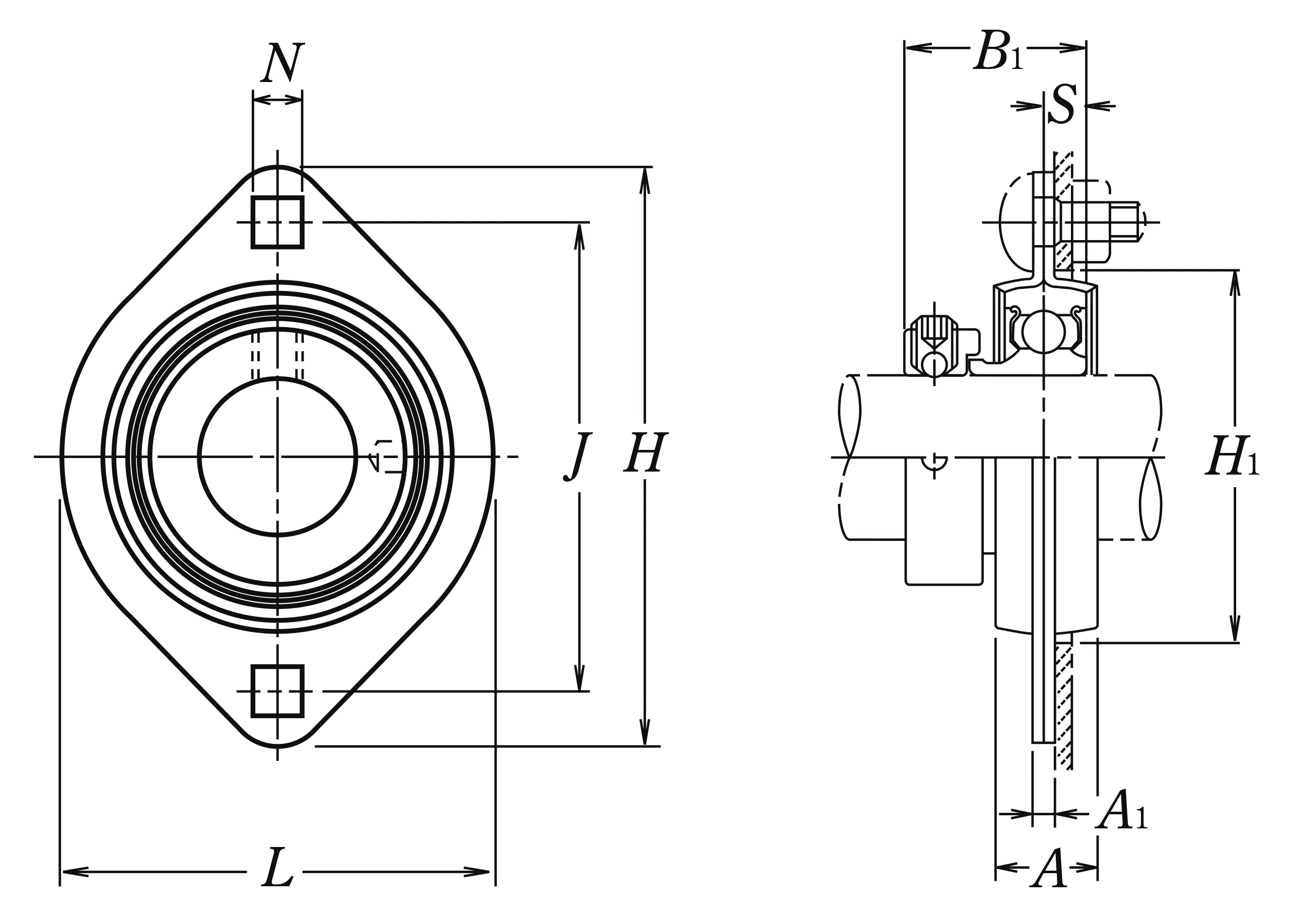

Nominal Dimensions

d	25	mm	Bore diameter
L,L1	71	mm	Overall height
H	95	mm	Height of spherical seat centre
J	76	mm	Distance between attachment bolts
N	9	mm	Diameter of attachment bolt hole
A1	4	mm	Flange width
A	18	mm	Base width
B,B1,B2	31	mm	Width of inner ring
H1	60	mm	Abutment diameter
S	7.5	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M 8

Bolt size

Permissible housing load

CR

4

kN

Radial

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.3

kg

Mass approx.
