F-UCFM205/LP99-

Designations

F-UCFM205/LP99

Included products

Bearing	F-UC205D1/LP99		Bearing
Housing	FM205		Housing

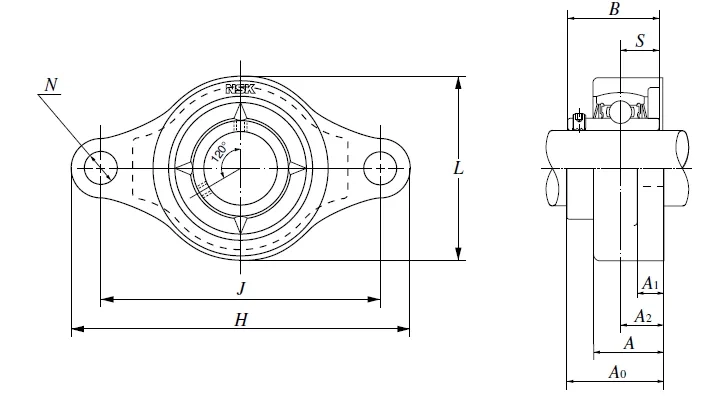

Nominal Dimensions

d	25	mm	Bore diameter
L,L1	68	mm	Overall height
H	127	mm	Height of spherical seat centre
J	99	mm	Distance between attachment bolts
N	16	mm	Diameter of attachment bolt hole
A2	16	mm	Flange width
A1	10	mm	Flange width
A	26.5	mm	Base width
A0	35.8	mm	Overall width
B,B1,B2	34.1	mm	Width of inner ring
S	14.3	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M10

Bolt size

Basic Load Ratings

Cr	10.8	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

mass

0.6

kg

Mass approx.
