UK324D1 Series-

Designations

UK324D1

Included products

Bearing

UK324D1

Bearing

Associated products

Adapter sleeve

H2324

Adapter sleeve

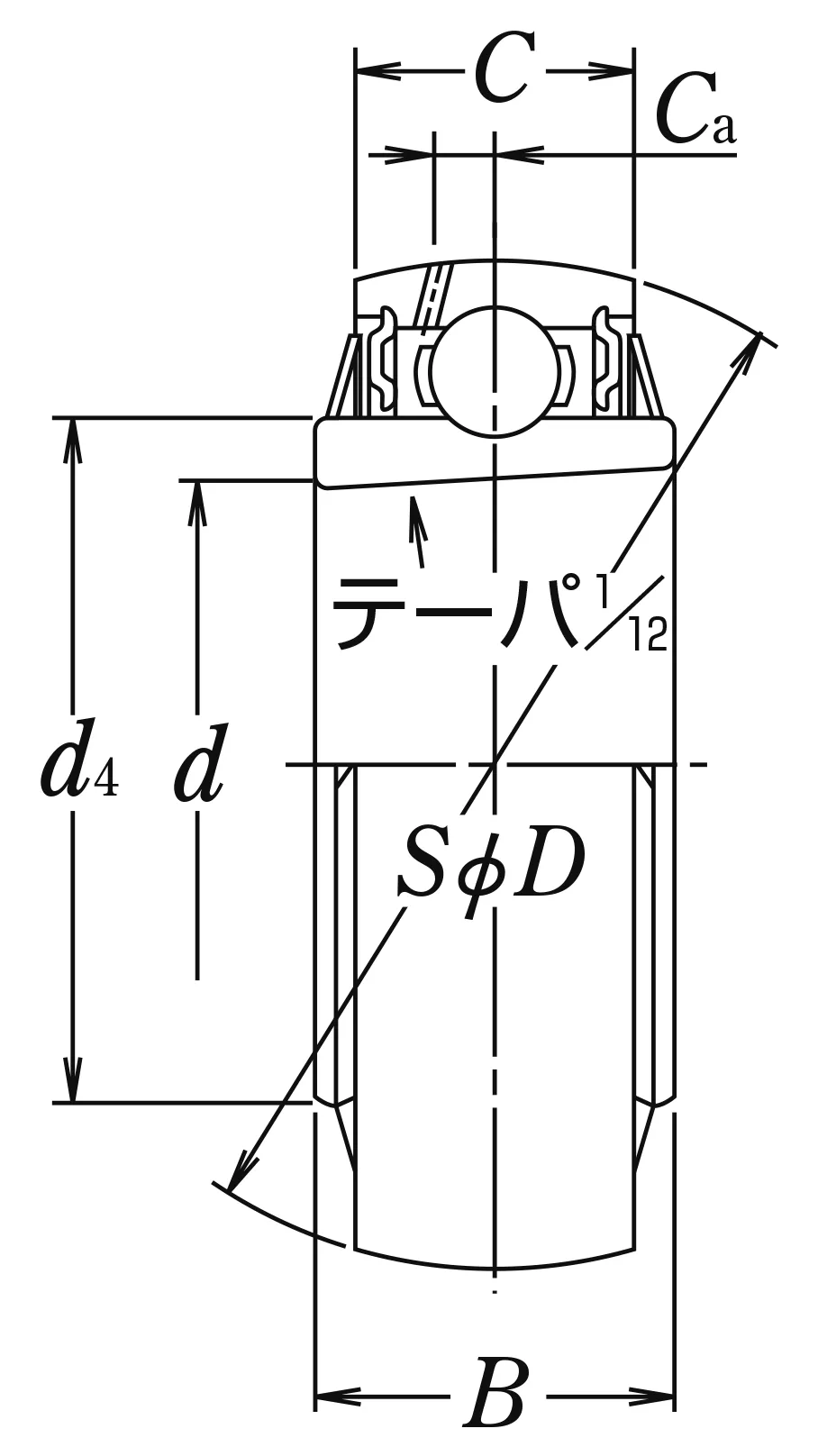

Nominal Dimensions

d	120	mm	Bore diameter
D	260	mm	Outside diameter
B1	112	mm	Overall bearing width
d1	110	mm	Sleeve bore diameter
d2	155	mm	Outside diameter lock nut
B,B4	86	mm	Width of inner ring
B2	22	mm	Width lock nut including lock washer
C	63	mm	Outer ring width
Ca	15.5	mm	Distance from oil hole centre to raceway centre
d4	165.2	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	207	kN	Basic dynamic load rating
C0r	185	kN	Basic static load rating

Mass

Mass approx.

18

kg

Mass approx.
