UEL212D1 Series-

Designations

UEL212D1

Included products

Bearing

UEL212D1

Bearing

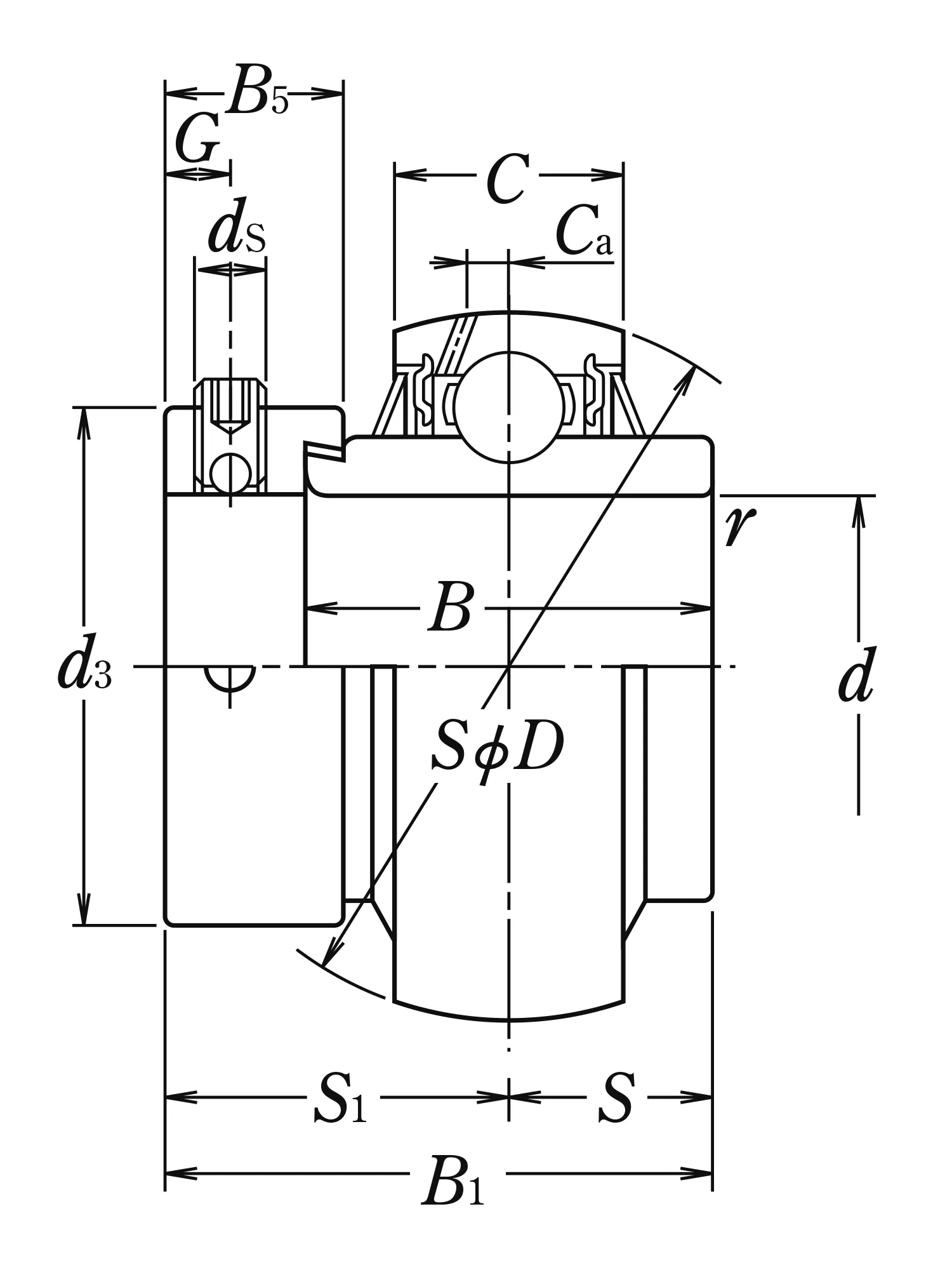

Nominal Dimensions

d	60	mm	Bore diameter
D	110	mm	Outside diameter
B1	77.8	mm	Overall bearing width
B,B4	61.9	mm	Width of inner ring
C	27	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
S1	46.85	mm	Distance from locking device side face to raceway centre
G	8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
Ca	7.3	mm	Distance from oil hole centre to raceway centre
d3	84	mm	Outside diameter of locking collar
B5	22.3	mm	Width of locking collar

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

Mass approx.

1.79

kg
