UELS212LN Series-

Designations

UELS212LN

Included products

Bearing

UELS212LN

Bearing

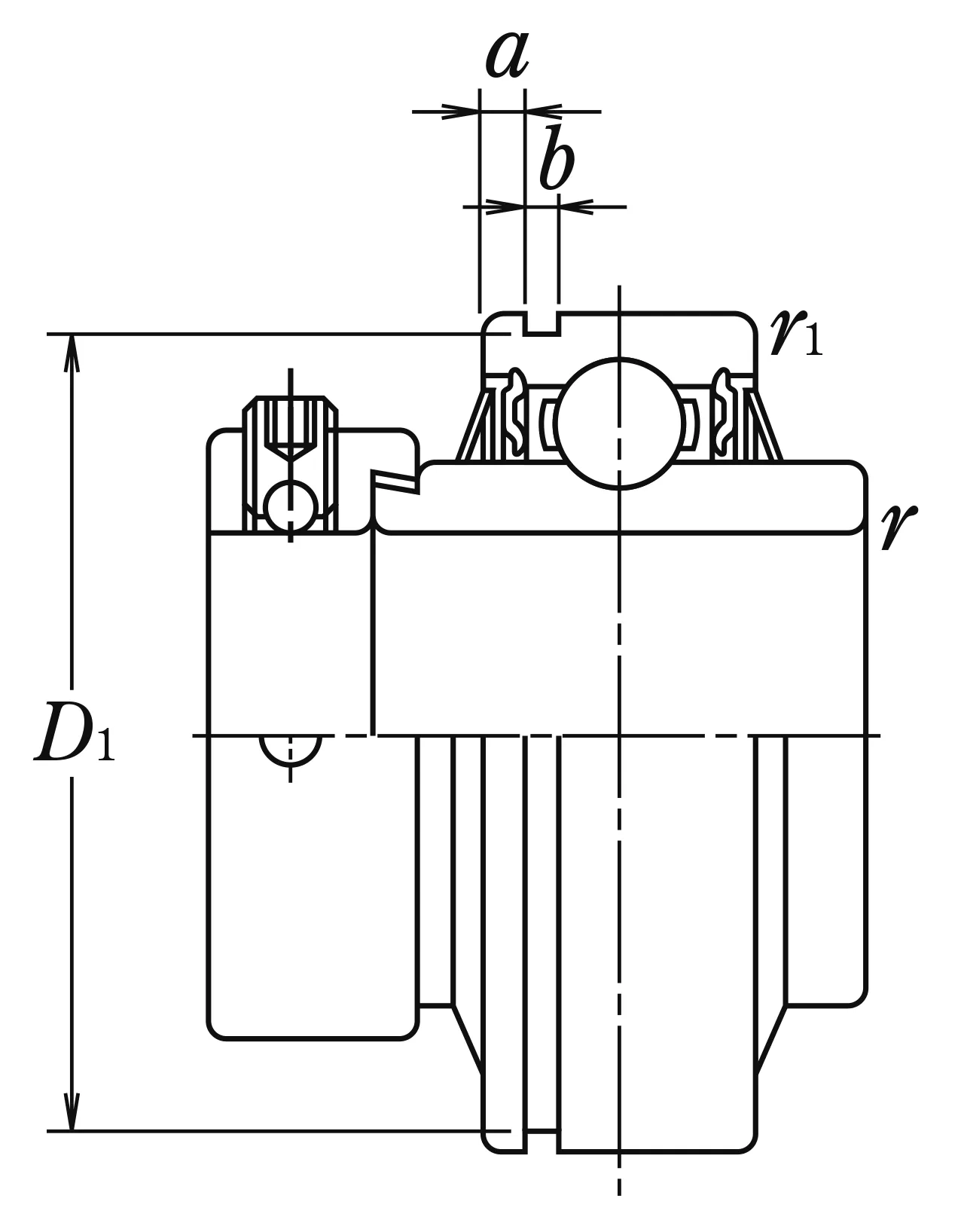

Nominal Dimensions

d	60	mm	Bore diameter
D	110	mm	Outside diameter
B1	77.8	mm	Overall bearing width
B,B4	61.9	mm	Width of inner ring
C	27	mm	Outer ring width
r(min.)	2	mm	Chamfer dimension
r1(min.)	2	mm	Chamfer dimension
S1	46.85	mm	Distance from locking device side face to raceway centre
G	8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d3	84	mm	Outside diameter of locking collar
D1	106.81	mm	Diameter of snap ring groove
B5	22.3	mm	Width of locking collar
a	4.4	mm	Distance outer ring from side face to snap ring groove
b	2.85	mm	Width of snap ring groove

Basic Load Ratings

Cr	52.5	kN	Basic dynamic load rating
C0r	36	kN	Basic static load rating

Mass

Mass approx.

1.93

kg
