UEL210D1 Series-

Designations

UEL210D1

Included products

Bearing

UEL210D1

Bearing

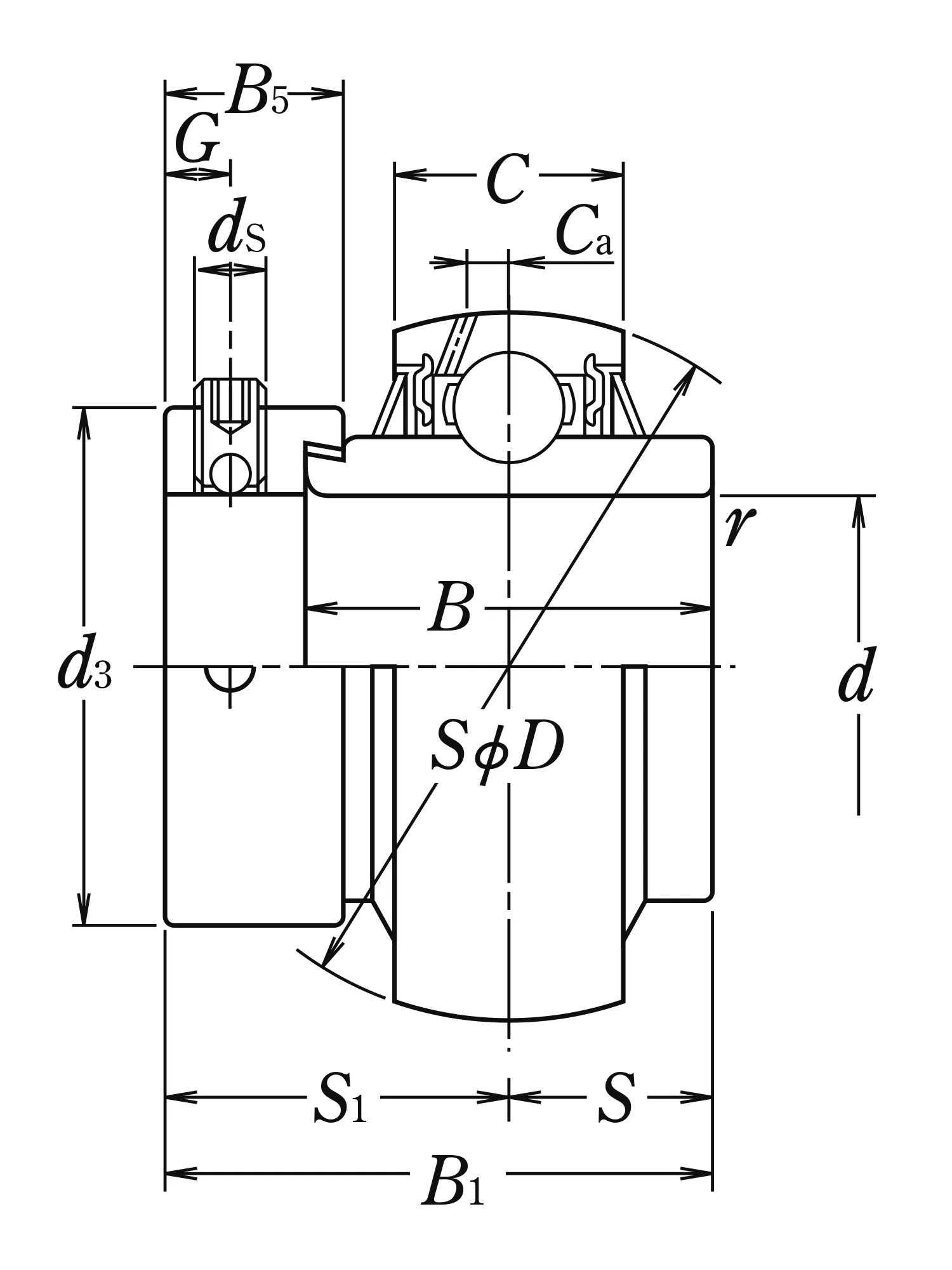

Nominal Dimensions

d	50	mm	Bore diameter
D	90	mm	Outside diameter
B1	62.7	mm	Overall bearing width
B,B4	49.2	mm	Width of inner ring
C	24	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
S1	38.1	mm	Distance from locking device side face to raceway centre
G	6.8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
Ca	6.1	mm	Distance from oil hole centre to raceway centre
d3	69.5	mm	Outside diameter of locking collar
B5	18.3	mm	Width of locking collar

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

Mass approx.

0.96

kg
