UELS210LN Series-

Designations

UELS210LN

Included products

Bearing

UELS210LN

Bearing

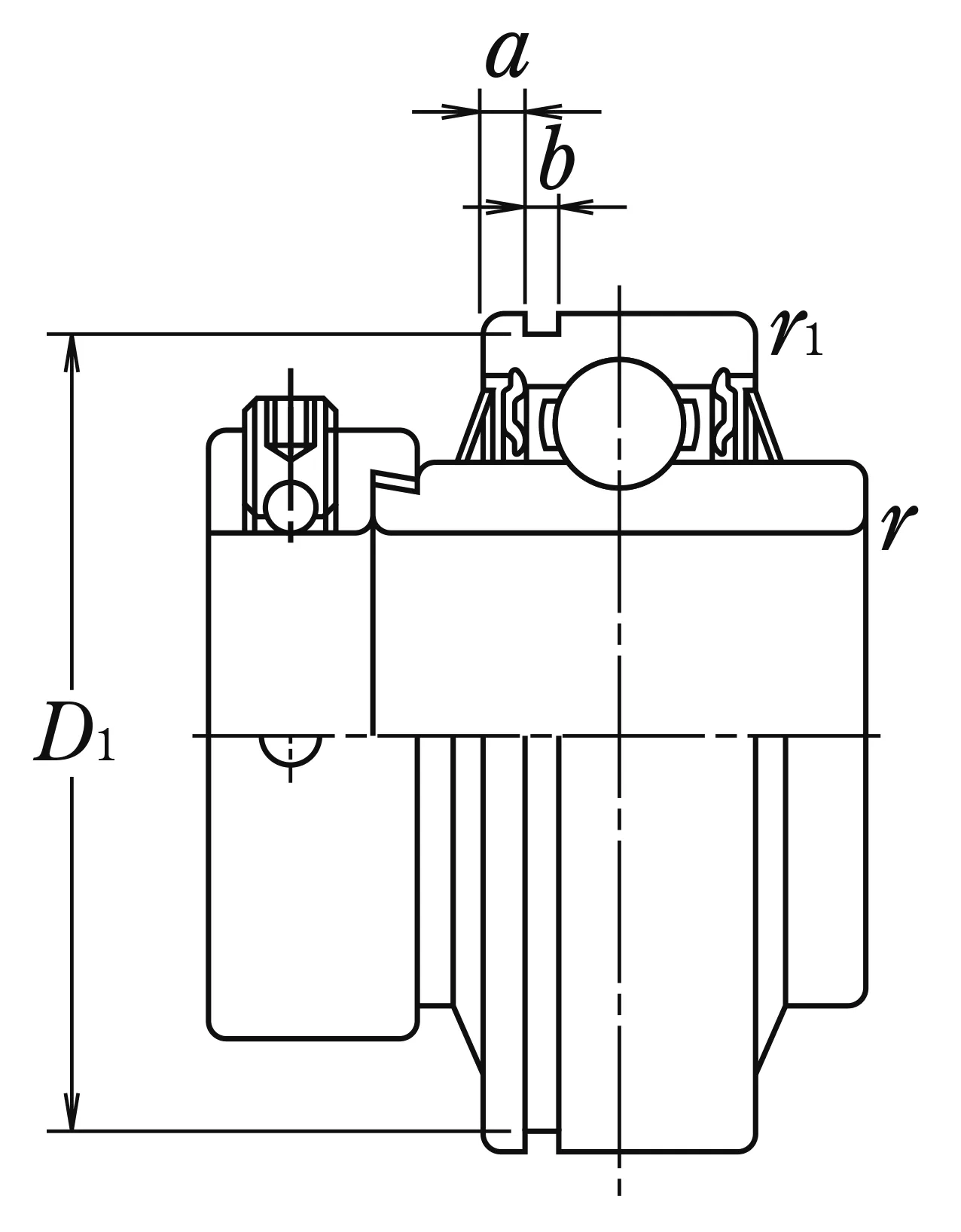

Nominal Dimensions

d	50	mm	Bore diameter
D	90	mm	Outside diameter
B1	62.7	mm	Overall bearing width
B,B4	49.2	mm	Width of inner ring
C	24	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
r1(min.)	1.5	mm	Chamfer dimension
S1	38.1	mm	Distance from locking device side face to raceway centre
G	6.8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d3	69.5	mm	Outside diameter of locking collar
D1	86.79	mm	Diameter of snap ring groove
B5	18.3	mm	Width of locking collar
a	3.7	mm	Distance outer ring from side face to snap ring groove
b	2.85	mm	Width of snap ring groove

Basic Load Ratings

Cr	35	kN	Basic dynamic load rating
C0r	23.2	kN	Basic static load rating

Mass

Mass approx.

0.98

kg
