AEL208 Series-

Designations

AEL208

Included products

Bearing

AEL208

Bearing

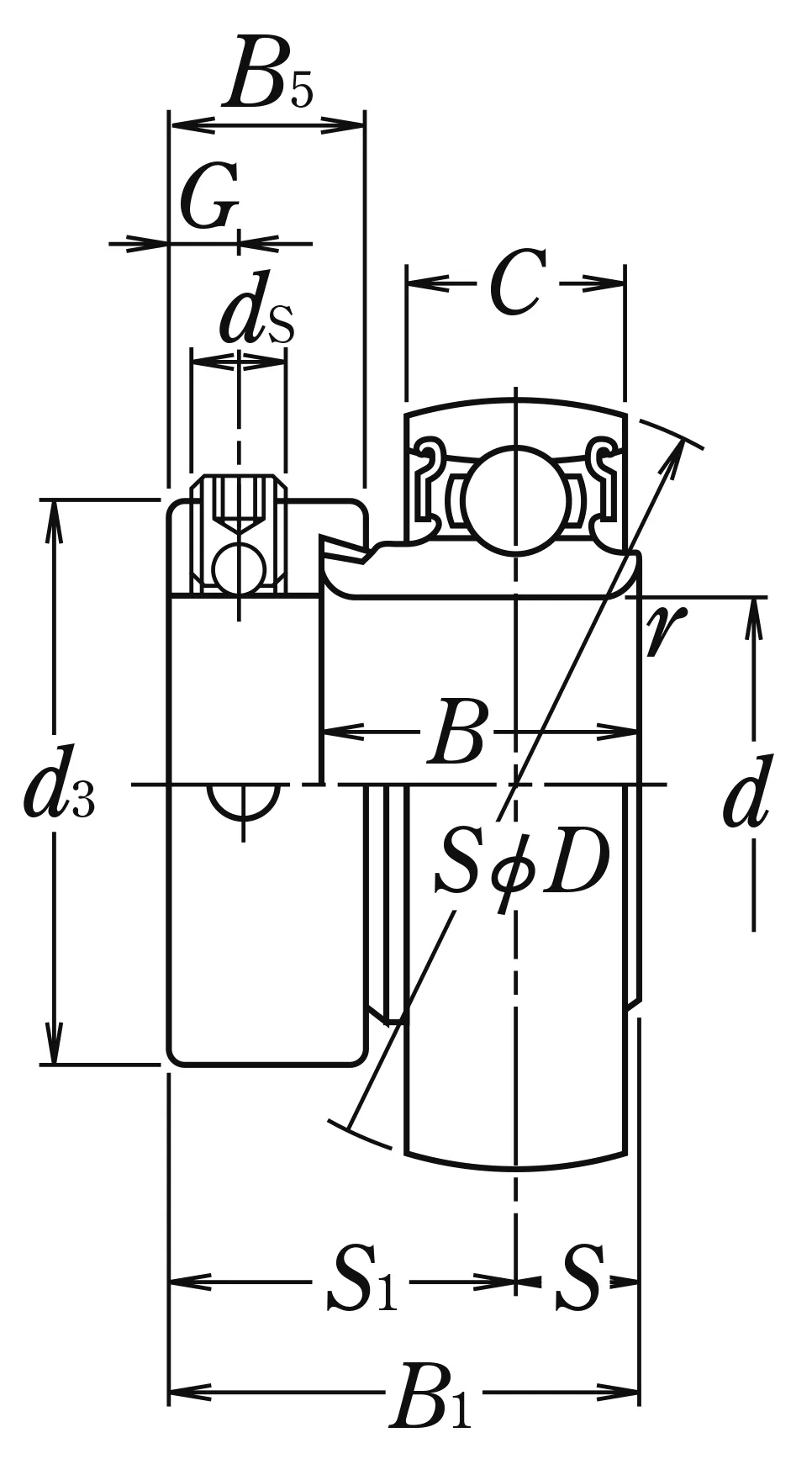

Nominal Dimensions

d	40	mm	Bore diameter
D	80	mm	Outside diameter
B1	43.7	mm	Overall bearing width
B,B4	30.2	mm	Width of inner ring
C	18	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
S1	32.7	mm	Distance from locking device side face to raceway centre
G	6.8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d3	60	mm	Outside diameter of locking collar
B5	18.3	mm	Width of locking collar

Basic Load Ratings

Cr	29.1	kN	Basic dynamic load rating
C0r	17.8	kN	Basic static load rating

Mass

Mass approx.

0.66

kg

Mass approx.
