CS208LLU Series
CS208LLU Series

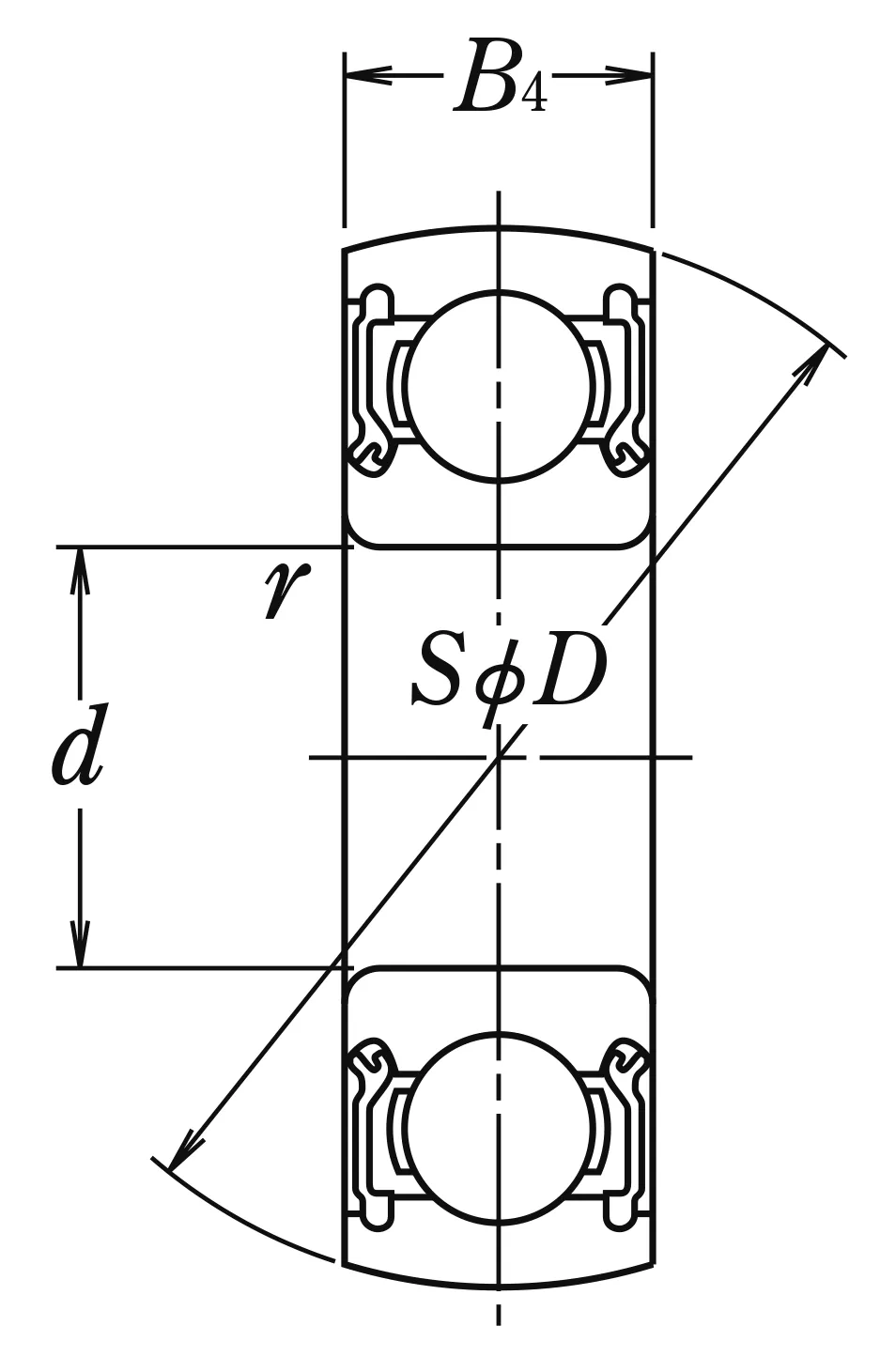

| CS208LLU |
| Bearing | CS208LLU | Bearing |
| d | 40 | mm | Bore diameter |
| D | 80 | mm | Outside diameter |
| B,B4 | 18 | mm | Width of inner ring |
| r(min.) | 1.5 | mm | Chamfer dimension |
| Cr | 29.1 | kN | Basic dynamic load rating |
| C0r | 17.8 | kN | Basic static load rating |
| Mass approx. | 0.37 | kg | Mass approx. |
