AELS208N Series-

Designations

AELS208N

Included products

Bearing

AELS208N

Bearing

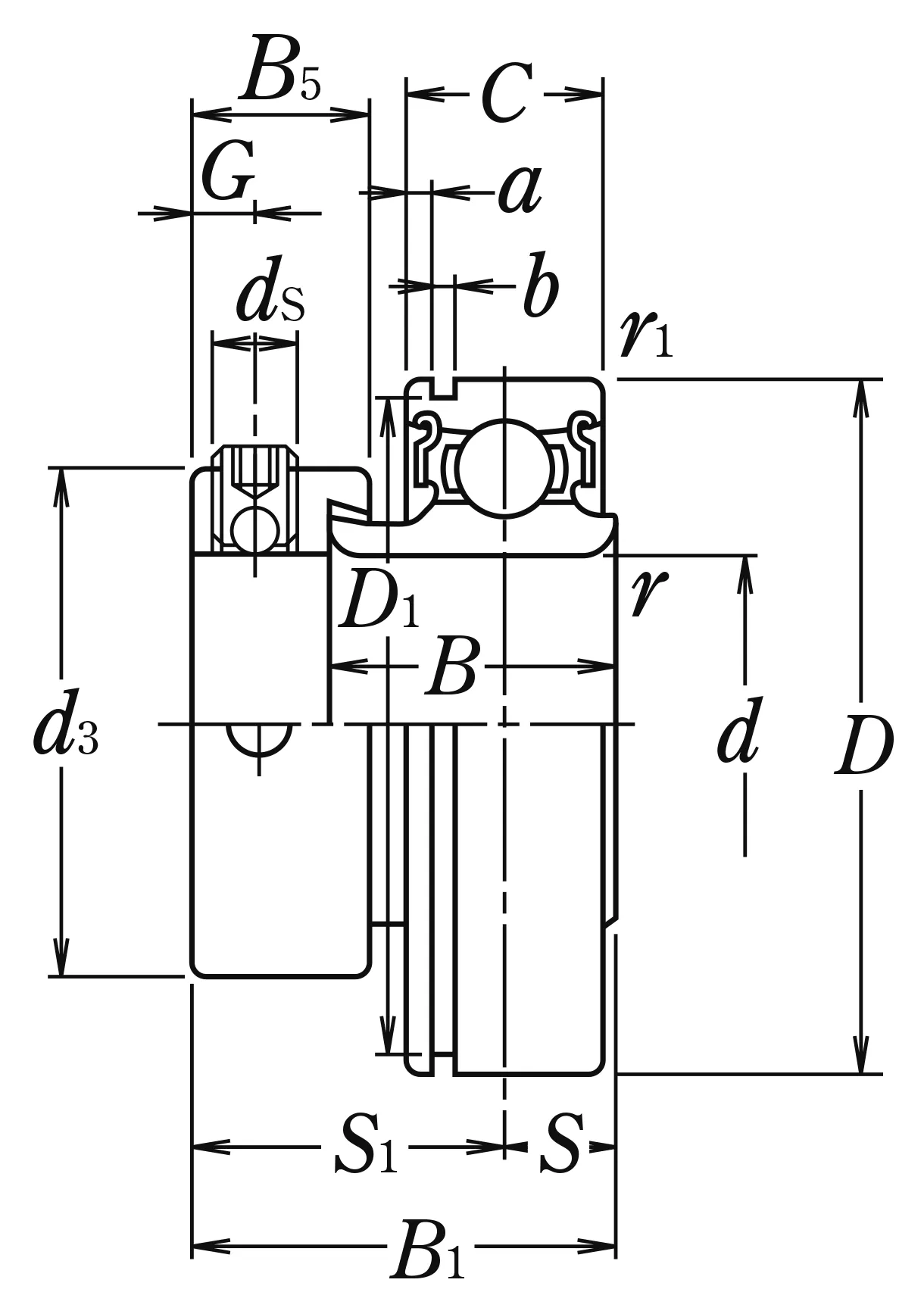

Nominal Dimensions

d	40	mm	Bore diameter
D	80	mm	Outside diameter
B1	43.7	mm	Overall bearing width
B,B4	30.2	mm	Width of inner ring
C	18	mm	Outer ring width
r(min.)	1.5	mm	Chamfer dimension
r1(min.)	0.6	mm	Chamfer dimension
S1	32.7	mm	Distance from locking device side face to raceway centre
G	6.8	mm	Distance face to thread centre
ds	M10×1.25		Set screw
d3	60	mm	Outside diameter of locking collar
D1	76.81	mm	Diameter of snap ring groove
B5	18.3	mm	Width of locking collar
a	3.18	mm	Distance outer ring from side face to snap ring groove
b	2.05	mm	Width of snap ring groove

Basic Load Ratings

Cr	29.1	kN	Basic dynamic load rating
C0r	17.8	kN	Basic static load rating

Mass

Mass approx.

0.64

kg

Mass approx.
