AS206 Series-

Designations

AS206

Included products

Bearing

AS206

Bearing

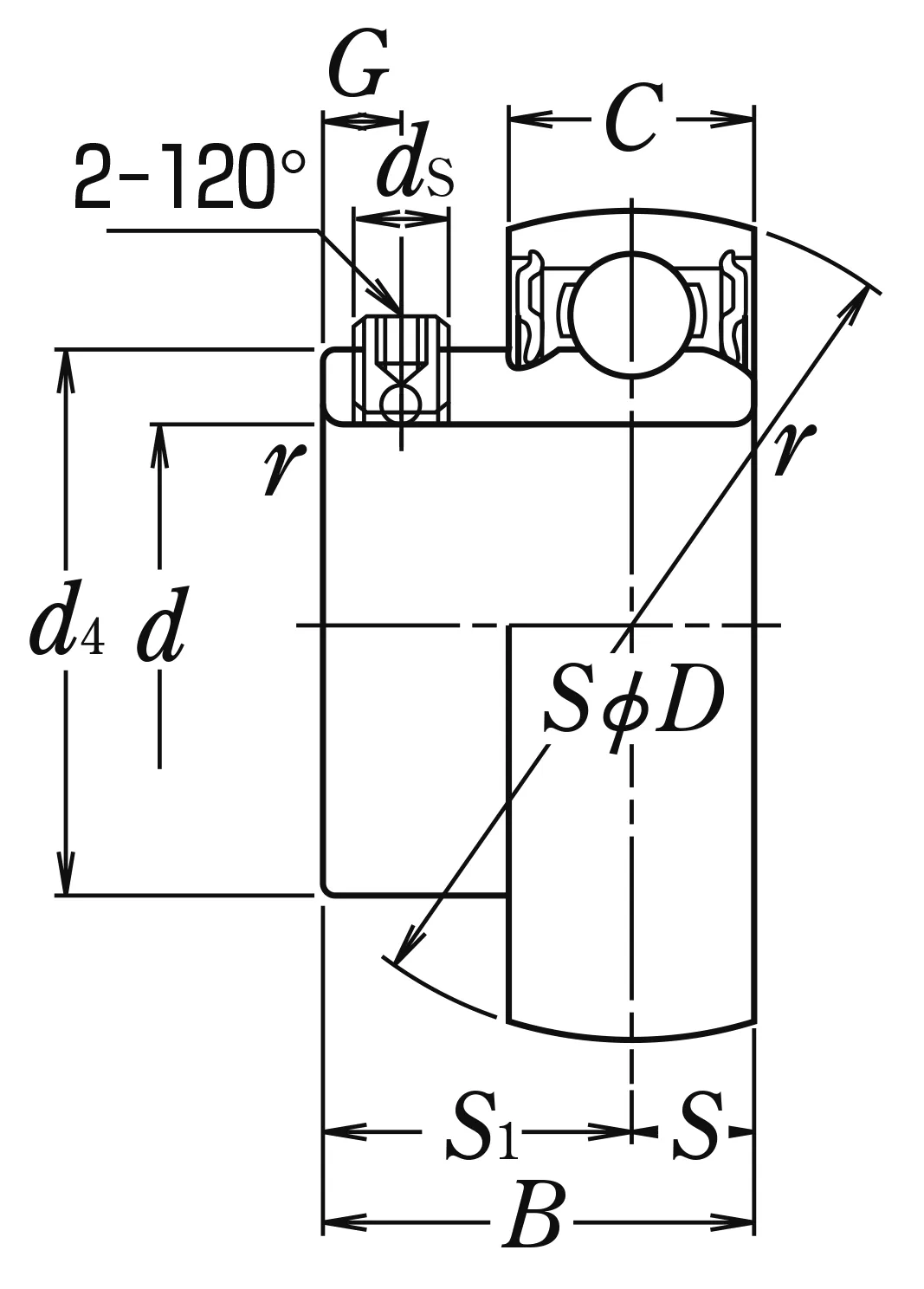

Nominal Dimensions

d	30	mm	Bore diameter
D	62	mm	Outside diameter
B,B4	29	mm	Width of inner ring
C	16	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
S1	21	mm	Distance from locking device side face to raceway centre
G	5	mm	Distance face to thread centre
ds	M6×0.75		Set screw
d4	40.8	mm	Outside diameter of inner ring

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

Mass approx.

0.25

kg
