ASS206N Series-

Designations

ASS206N

Included products

Bearing

ASS206N

Bearing

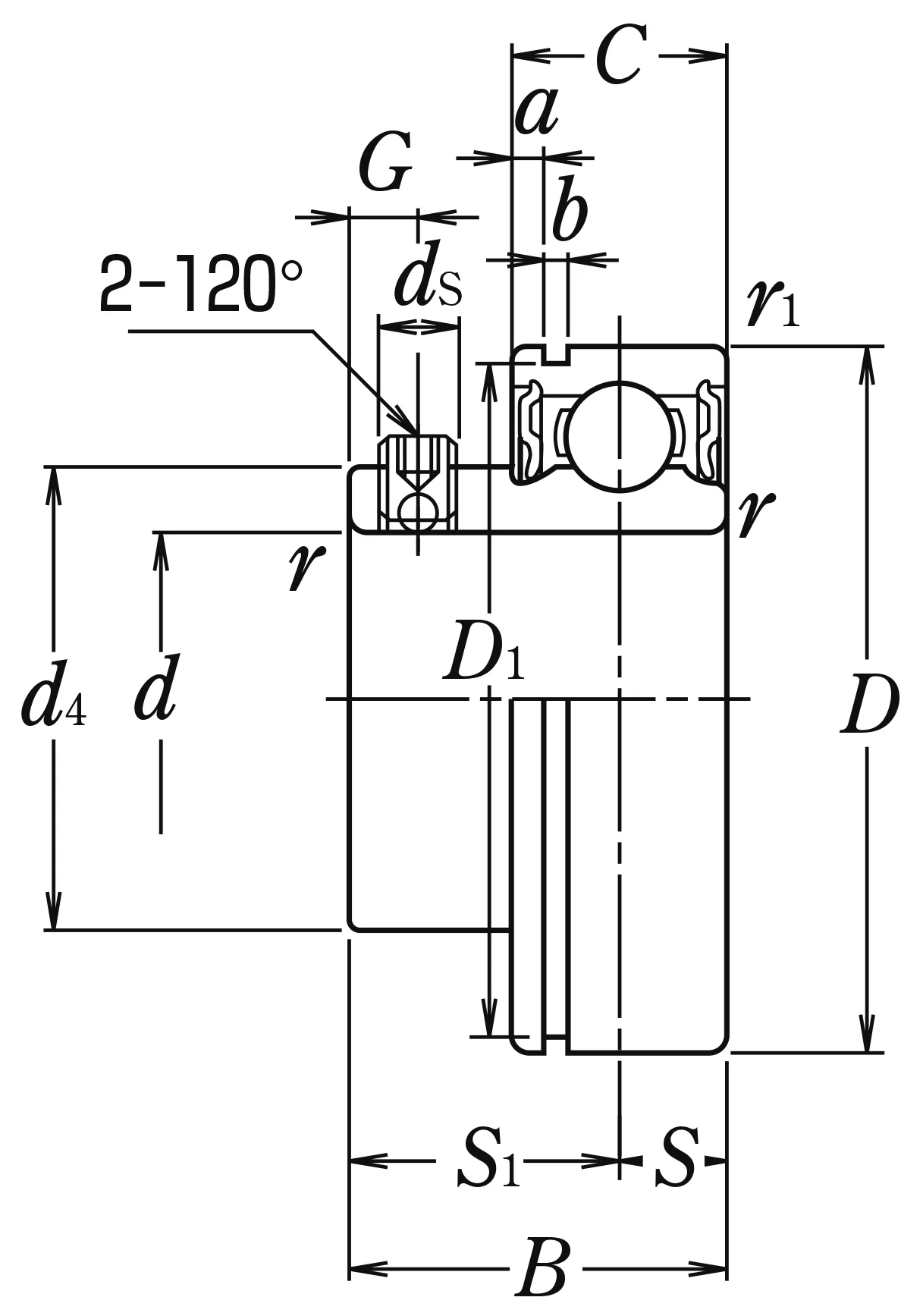

Nominal Dimensions

d	30	mm	Bore diameter
D	62	mm	Outside diameter
B,B4	29	mm	Width of inner ring
C	16	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
r1(min.)	0.6	mm	Chamfer dimension
S1	21	mm	Distance from locking device side face to raceway centre
G	5	mm	Distance face to thread centre
ds	M6×0.75		Set screw
d4	40.8	mm	Outside diameter of inner ring
D1	59.61	mm	Diameter of snap ring groove
a	3.18	mm	Distance outer ring from side face to snap ring groove
b	2.05	mm	Width of snap ring groove

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

Mass approx.

0.31

kg

Mass approx.
