UKS206LN Series-

Designations

UKS206LN

Included products

Bearing

UKS206LN

Bearing

Associated products

Adapter sleeve

H2306X

Adapter sleeve

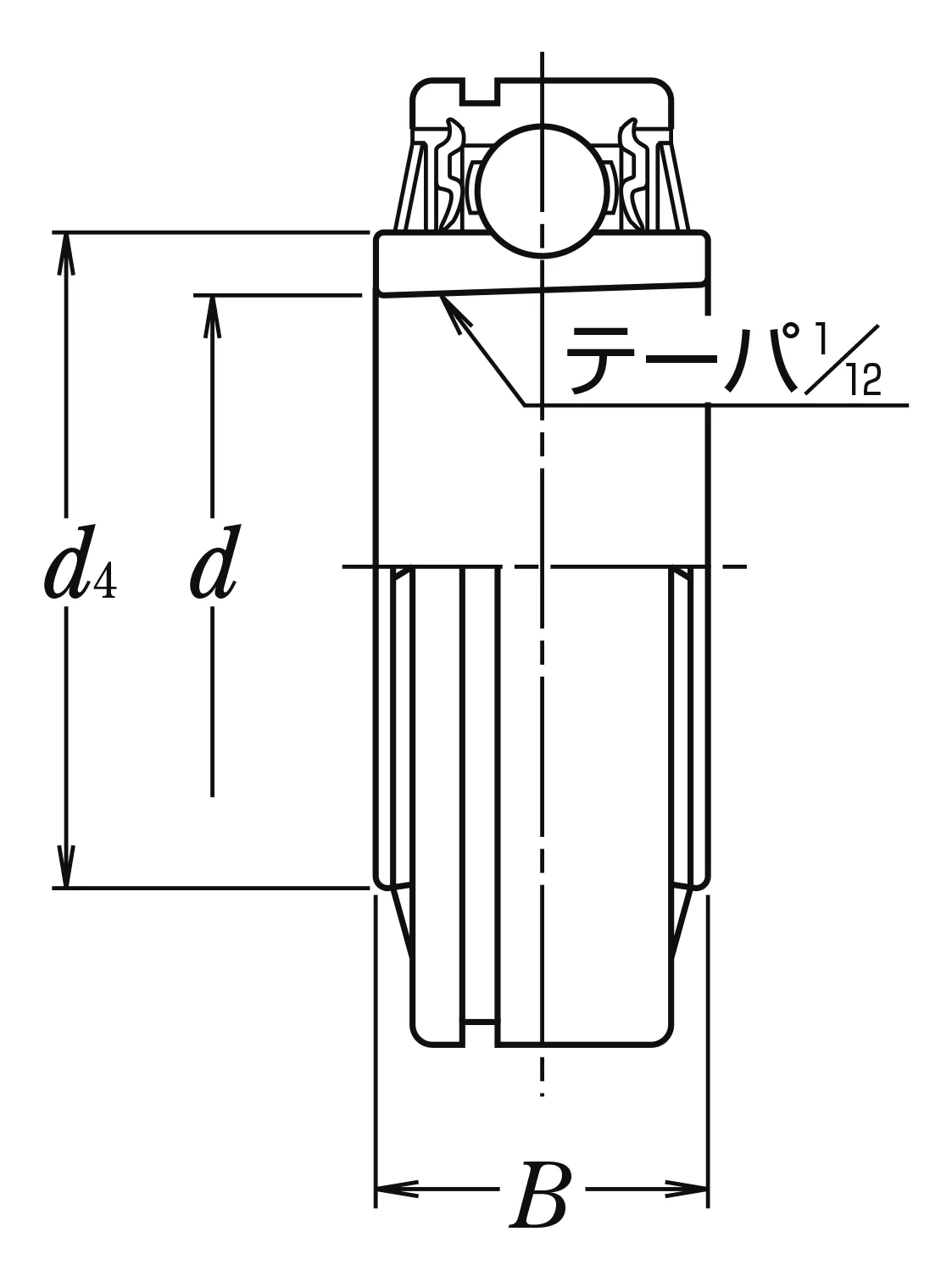

Nominal Dimensions

d	30	mm	Bore diameter
D	62	mm	Outside diameter
B1	38	mm	Overall bearing width
d1	25	mm	Sleeve bore diameter
d2	45	mm	Outside diameter lock nut
B,B4	26	mm	Width of inner ring
B2	8	mm	Width lock nut including lock washer
C	19	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
d4	40.8	mm	Outside diameter of inner ring
D1	59.61	mm	Diameter of snap ring groove
a	3.2	mm	Distance outer ring from side face to snap ring groove
b	2.05	mm	Width of snap ring groove

Basic Load Ratings

Cr	19.5	kN	Basic dynamic load rating
C0r	11.3	kN	Basic static load rating

Mass

Mass approx.

0.36

kg

Mass approx.
