AEL205 Series-

Designations

AEL205

Included products

Bearing

AEL205

Bearing

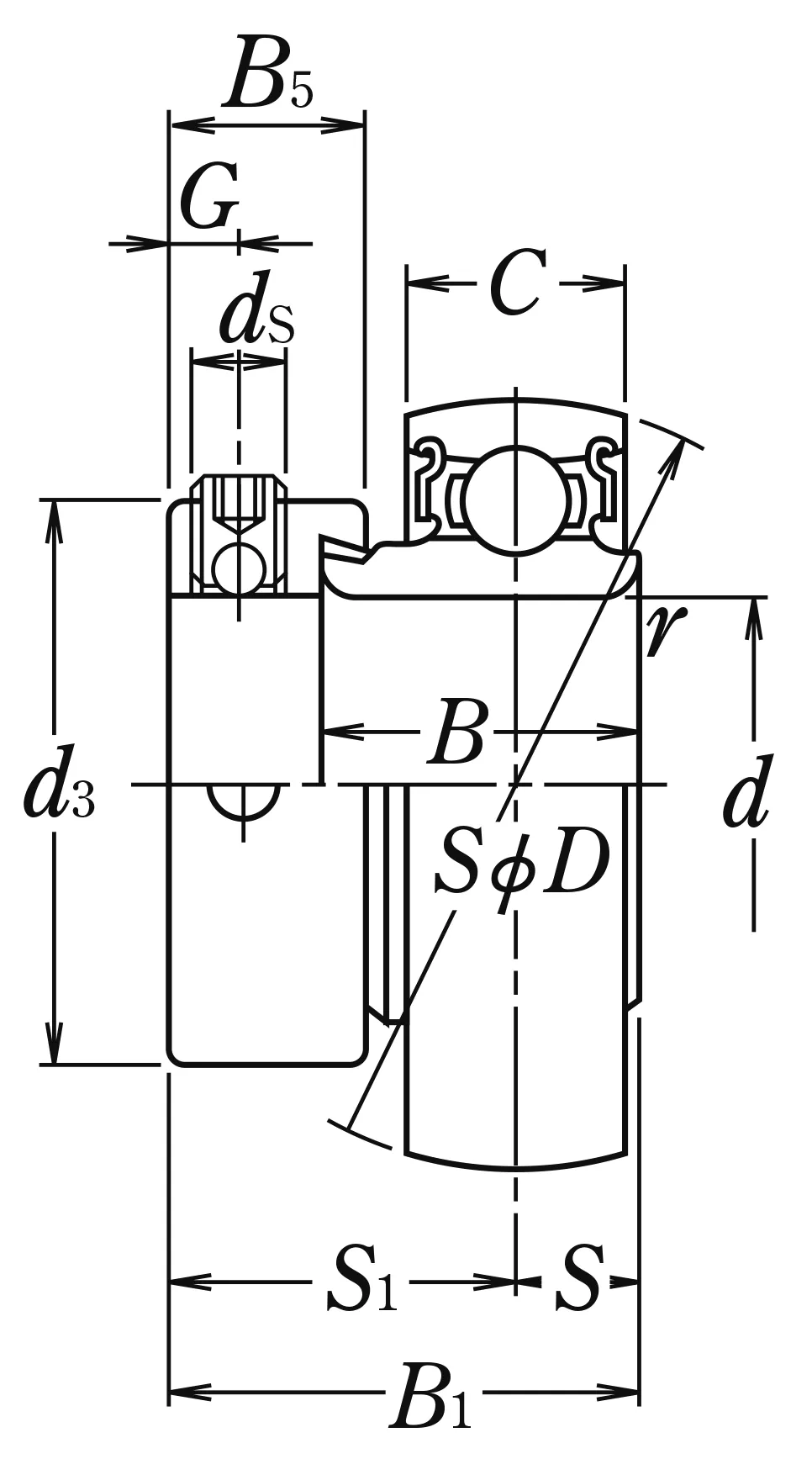

Nominal Dimensions

d	25	mm	Bore diameter
D	52	mm	Outside diameter
B1	31	mm	Overall bearing width
B,B4	21.5	mm	Width of inner ring
C	15	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
S1	23.5	mm	Distance from locking device side face to raceway centre
G	4.8	mm	Distance face to thread centre
ds	M 6×0.75		Set screw
d3	38	mm	Outside diameter of locking collar
B5	13.5	mm	Width of locking collar

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

Mass approx.

0.22

kg

Mass approx.
