Time：2025-11-25
Edit：JFU Bearing
CS205LLU Series
CS205LLU Series

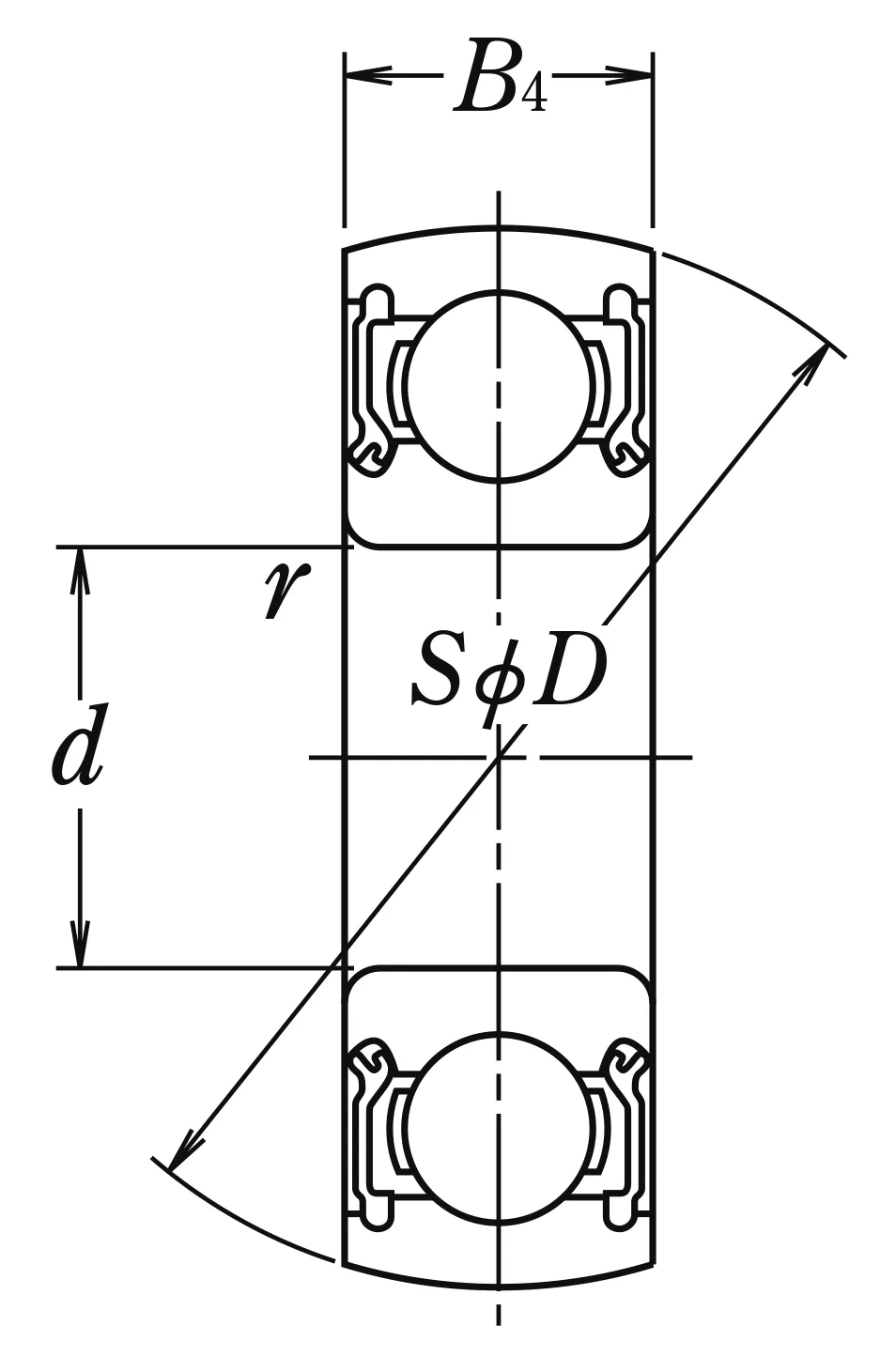

| CS205LLU |
| Bearing | CS205LLU | Bearing |
| d | 25 | mm | Bore diameter |
| D | 52 | mm | Outside diameter |
| B,B4 | 15 | mm | Width of inner ring |
| r(min.) | 1 | mm | Chamfer dimension |
| Cr | 14 | kN | Basic dynamic load rating |
| C0r | 7.85 | kN | Basic static load rating |
| Mass approx. | 0.13 | kg | Mass approx. |
