AELS205N Series-

Designations

AELS205N

Included products

Bearing

AELS205N

Bearing

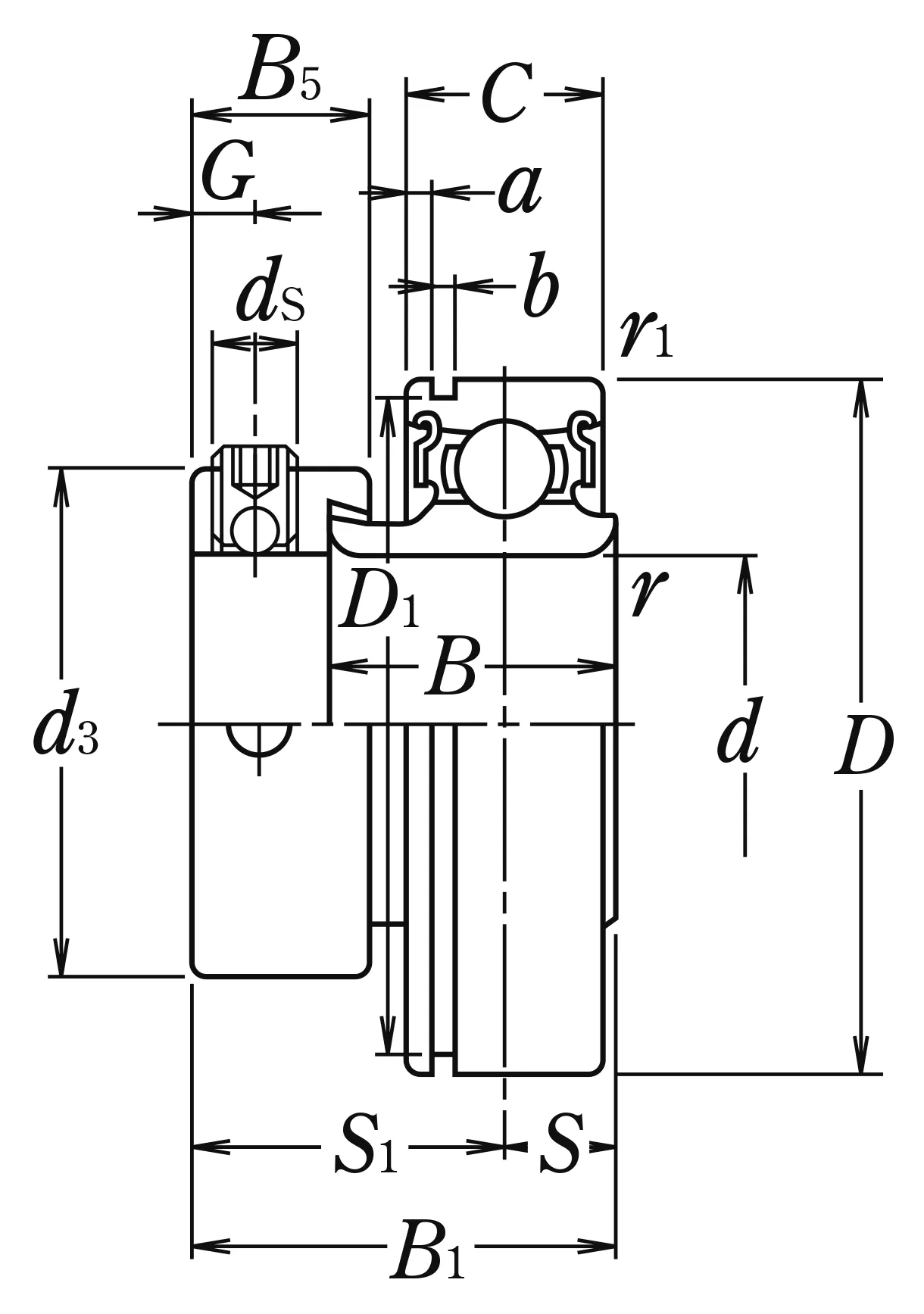

Nominal Dimensions

d	25	mm	Bore diameter
D	52	mm	Outside diameter
B1	31	mm	Overall bearing width
B,B4	21.5	mm	Width of inner ring
C	15	mm	Outer ring width
r(min.)	1	mm	Chamfer dimension
r1(min.)	0.6	mm	Chamfer dimension
S1	23.5	mm	Distance from locking device side face to raceway centre
G	4.8	mm	Distance face to thread centre
ds	M 6×0.75		Set screw
d3	38	mm	Outside diameter of locking collar
D1	49.73	mm	Diameter of snap ring groove
B5	13.5	mm	Width of locking collar
a	2.38	mm	Distance outer ring from side face to snap ring groove
b	1.5	mm	Width of snap ring groove

Basic Load Ratings

Cr	14	kN	Basic dynamic load rating
C0r	7.85	kN	Basic static load rating

Mass

Mass approx.

0.2

kg

Mass approx.
