UCFS326D1-

Designations

UCFS326D1

Included products

Bearing	UC326D1		Bearing
Housing	FS326D1		Housing

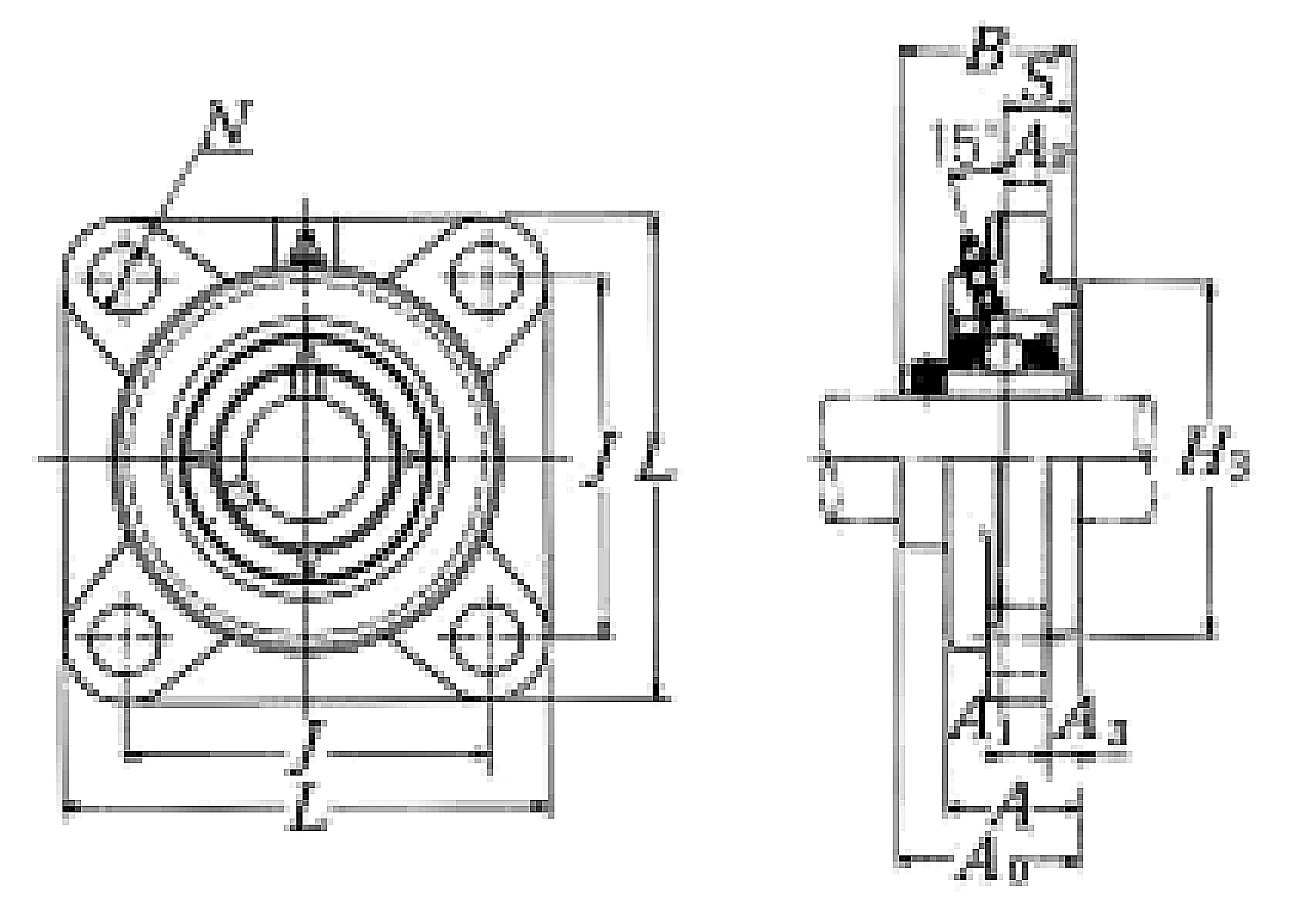

Nominal Dimensions

d	130	mm	Bore diameter
L	410	mm	Overall length
H3	360	mm	Outer diameter of Spigot Joint
J	320	mm	Distance between attachment bolts
A3	30	mm	Height of of Spigot Joint
A2	35	mm	Flange width
A1	45	mm	Flange width
A	115	mm	Base width
A0	146	mm	Overall width
B,B1,B2	135	mm	Width of inner ring
S	54	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M36

Bolt size

Basic Load Ratings

Cr	229	kN	Basic dynamic load rating
C0r	214	kN	Basic static load rating

Mass

mass

69

kg

Mass approx.
