C-UKFS328D1-

Designations

C-UKFS328D1

Included products

Bearing	UK328D1		Bearing
Housing	FS328D1		Housing

Associated products

Adapter sleeve

H2328

Adapter sleeve

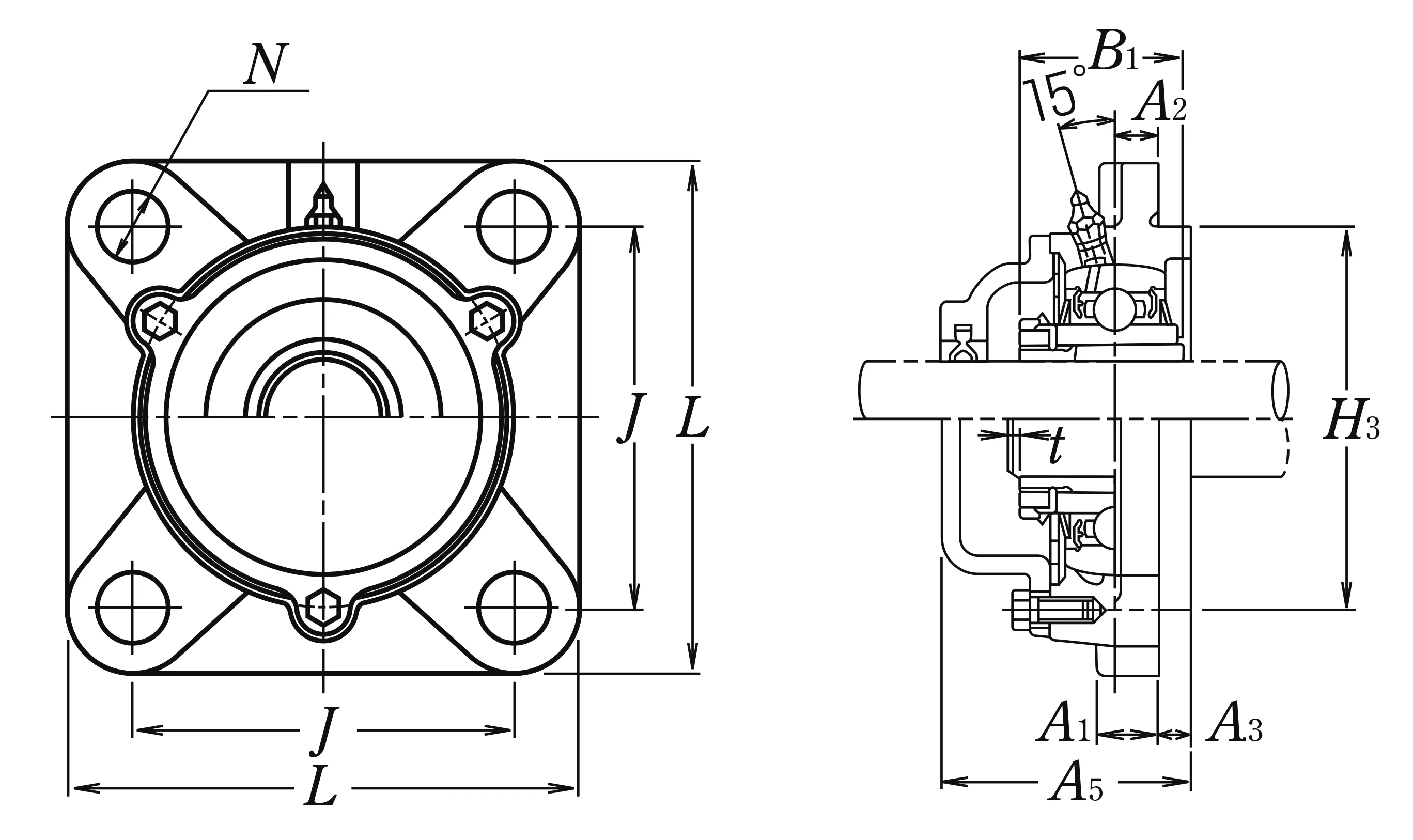

Nominal Dimensions

d	125	mm	Bore diameter
L	450	mm	Overall length
H3	400	mm	Outer diameter of Spigot Joint
J	350	mm	Distance between attachment bolts
A3	30	mm	Height of of Spigot Joint
A2	45	mm	Flange width
A1	55	mm	Flange width
A5	192	mm	Width including end cover
B,B1,B2	131	mm	Width of inner ring
t	6	mm	Clearance

Mounting information

G

M36

Bolt size

Basic Load Ratings

Cr	253	kN	Basic dynamic load rating
C0r	246	kN	Basic static load rating

Mass

mass

110

kg

Mass approx.
