UKFS328D1-

Designations

UKFS328D1

Included products

Bearing	UK328D1		Bearing
Housing	FS328D1		Housing

Associated products

Adapter sleeve

H2328

Adapter sleeve

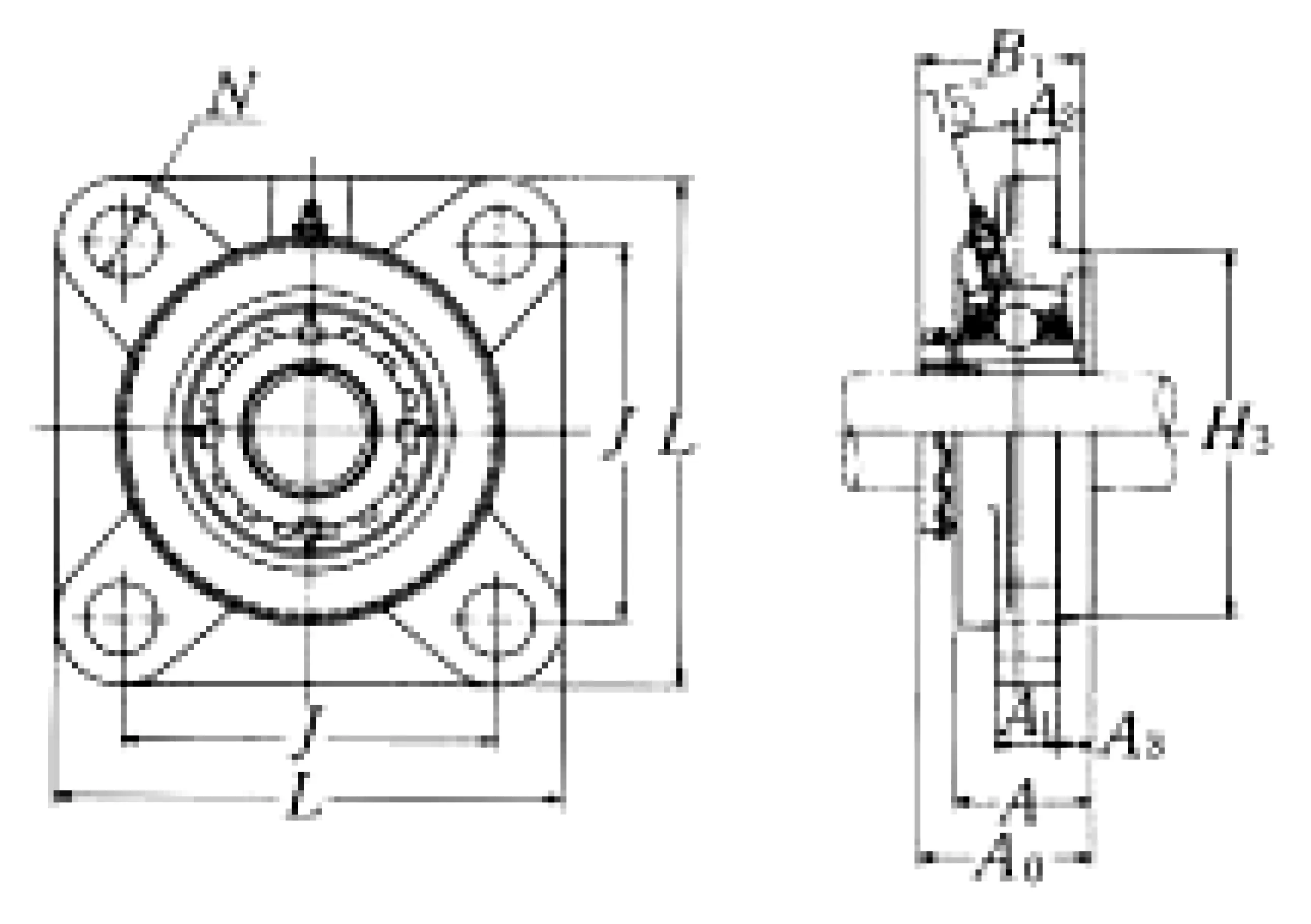

Nominal Dimensions

d	125	mm	Bore diameter
L	450	mm	Overall length
H3	400	mm	Outer diameter of Spigot Joint
J	350	mm	Distance between attachment bolts
A3	30	mm	Height of of Spigot Joint
A2	45	mm	Flange width
A1	55	mm	Flange width
A	125	mm	Base width
A0	146.5	mm	Overall width
B,B1,B2	131	mm	Width of inner ring

Mounting information

G

M36

Bolt size

Basic Load Ratings

Cr	253	kN	Basic dynamic load rating
C0r	246	kN	Basic static load rating

Mass

mass

98

kg

Mass approx.
