UCFS320D1-

Designations

UCFS320D1

Included products

Bearing	UC320D1		Bearing
Housing	FS320D1		Housing

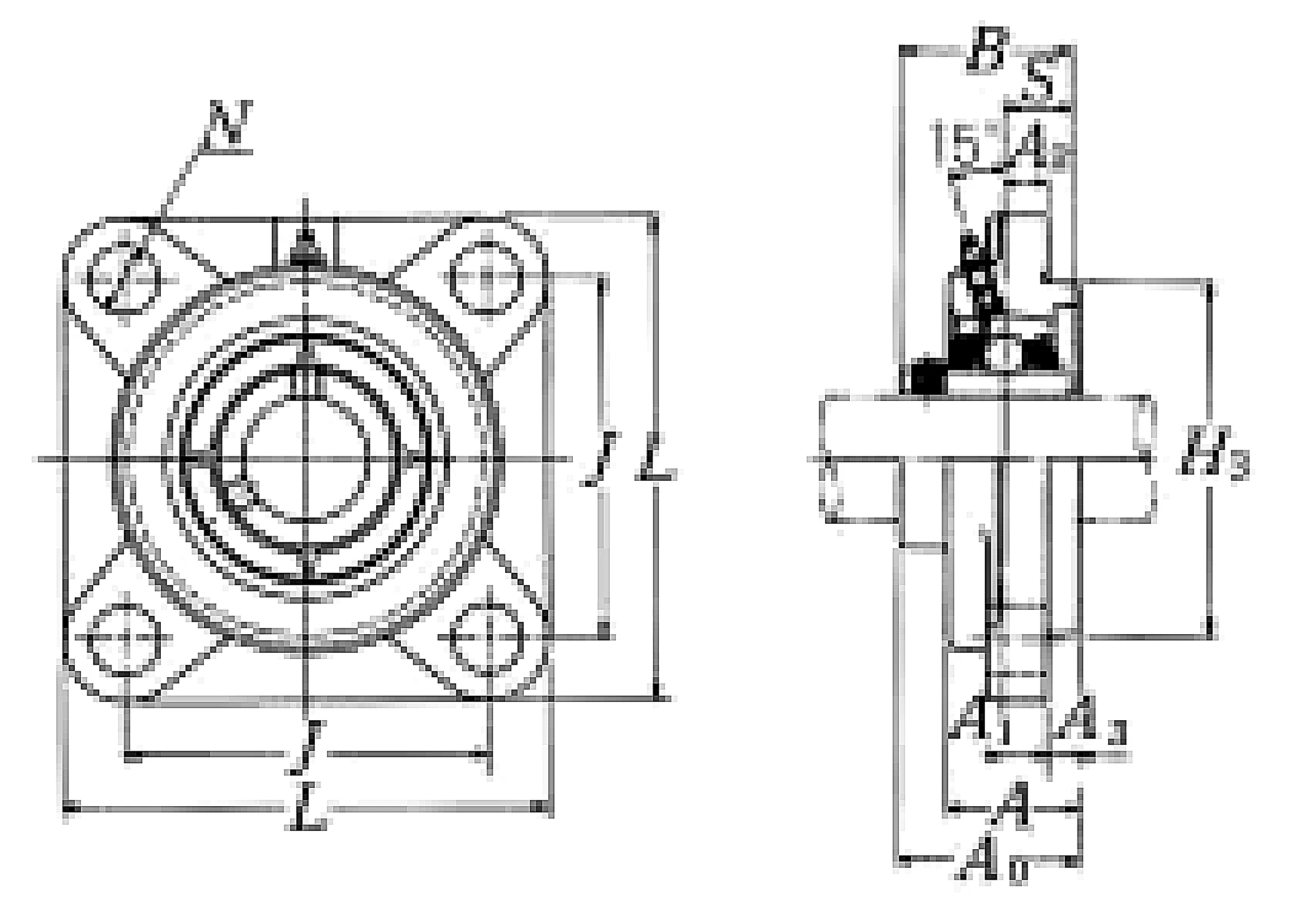

Nominal Dimensions

d	100	mm	Bore diameter
L	310	mm	Overall length
H3	260	mm	Outer diameter of Spigot Joint
J	242	mm	Distance between attachment bolts
A3	20	mm	Height of of Spigot Joint
A2	39	mm	Flange width
A1	32	mm	Flange width
A	94	mm	Base width
A0	125	mm	Overall width
B,B1,B2	108	mm	Width of inner ring
S	42	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M33

Bolt size

Basic Load Ratings

Cr	173	kN	Basic dynamic load rating
C0r	141	kN	Basic static load rating

Mass

mass

29

kg

Mass approx.
