C-UKFX16D1-

Designations

C-UKFX16D1

Included products

Bearing	UKX16D1		Bearing
Housing	FX16D1		Housing

Associated products

Adapter sleeve

H2316X

Adapter sleeve

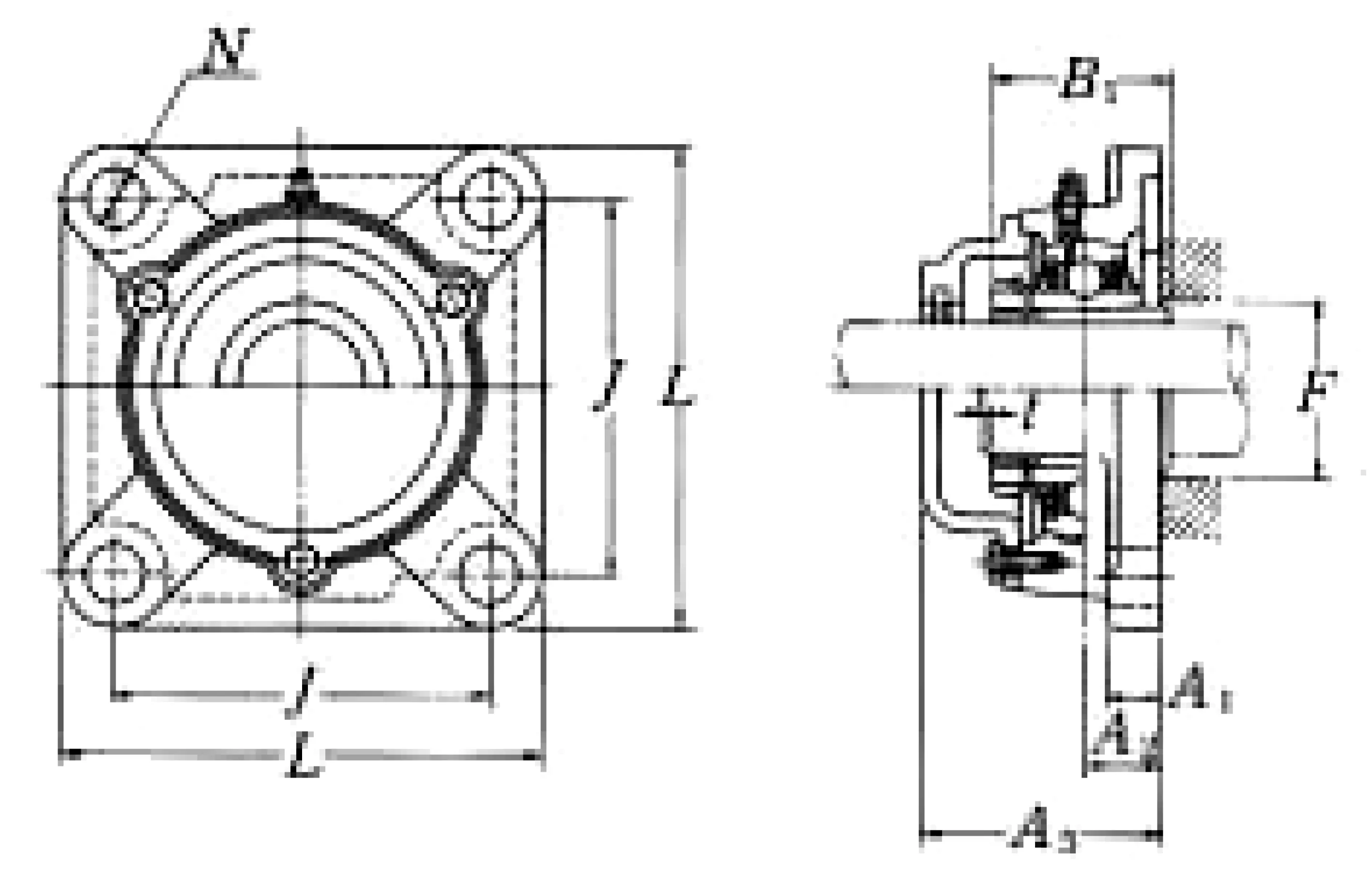

Nominal Dimensions

d	70	mm	Bore diameter
L	214	mm	Overall length
J	171	mm	Distance between attachment bolts
N	23	mm	Diameter of attachment bolt hole
A2	40	mm	Flange width
A1	24	mm	Flange width
A5	118	mm	Width including end cover
A0	80	mm	Overall width
B,B1,B2	78	mm	Width of inner ring
F	90	mm	Diameter of housing abutment
t	4	mm	Clearance

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	83.5	kN	Basic dynamic load rating
C0r	64	kN	Basic static load rating

Mass

mass

12

kg

Mass approx.
