UCFX14D1-

Designations

UCFX14D1

Included products

Bearing	UCX14D1		Bearing
Housing	FX14D1		Housing

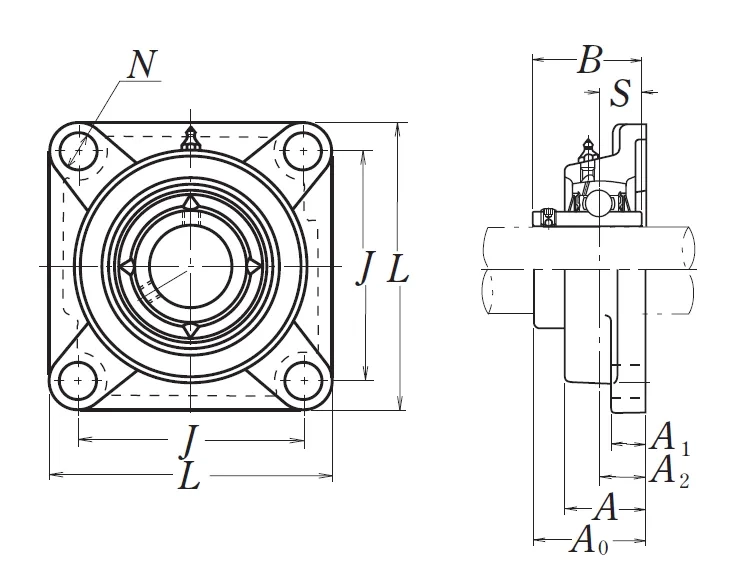

Nominal Dimensions

d	70	mm	Bore diameter
L	197	mm	Overall length
J	152	mm	Distance between attachment bolts
N	23	mm	Diameter of attachment bolt hole
A2	37	mm	Flange width
A1	24	mm	Flange width
A	60	mm	Base width
A0	81.5	mm	Overall width
B,B1,B2	77.8	mm	Width of inner ring
S	33.3	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	66	kN	Basic dynamic load rating
C0r	49.5	kN	Basic static load rating

Mass

mass

7.1

kg

Mass approx.
