C-UCFS313D1-

Designations

C-UCFS313D1

Included products

Bearing	UC313D1		Bearing
Housing	FS313D1		Housing

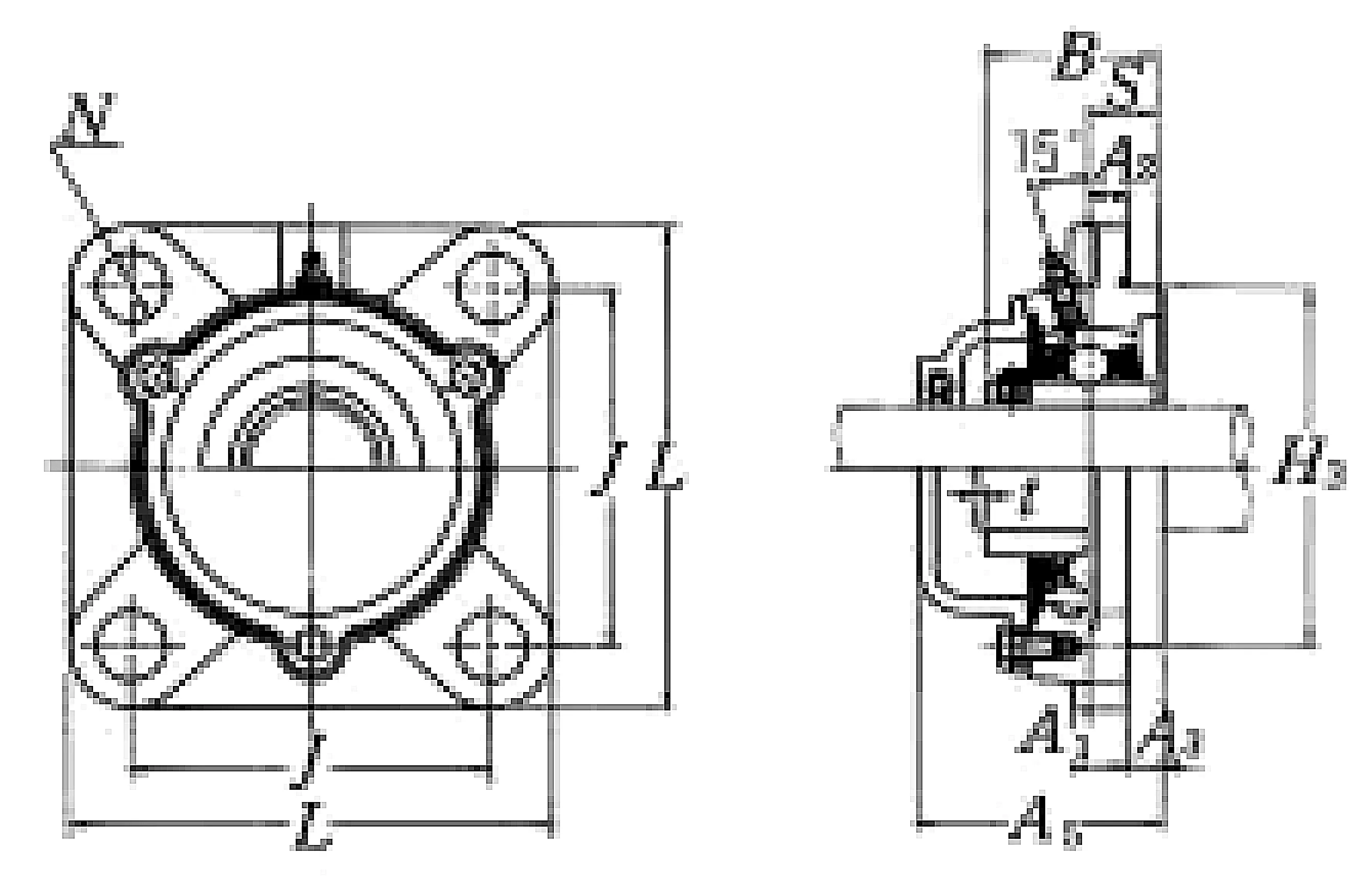

Nominal Dimensions

d	65	mm	Bore diameter
L	208	mm	Overall length
H3	175	mm	Outer diameter of Spigot Joint
J	166	mm	Distance between attachment bolts
A3	18	mm	Height of of Spigot Joint
A2	15	mm	Flange width
A1	22	mm	Flange width
A5	103	mm	Width including end cover
B,B1,B2	75	mm	Width of inner ring
t	4	mm	Clearance
S	30	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	92.5	kN	Basic dynamic load rating
C0r	60	kN	Basic static load rating

Mass

mass

10

kg

Mass approx.
