UCFS313D1-

Designations

UCFS313D1

Included products

Bearing	UC313D1		Bearing
Housing	FS313D1		Housing

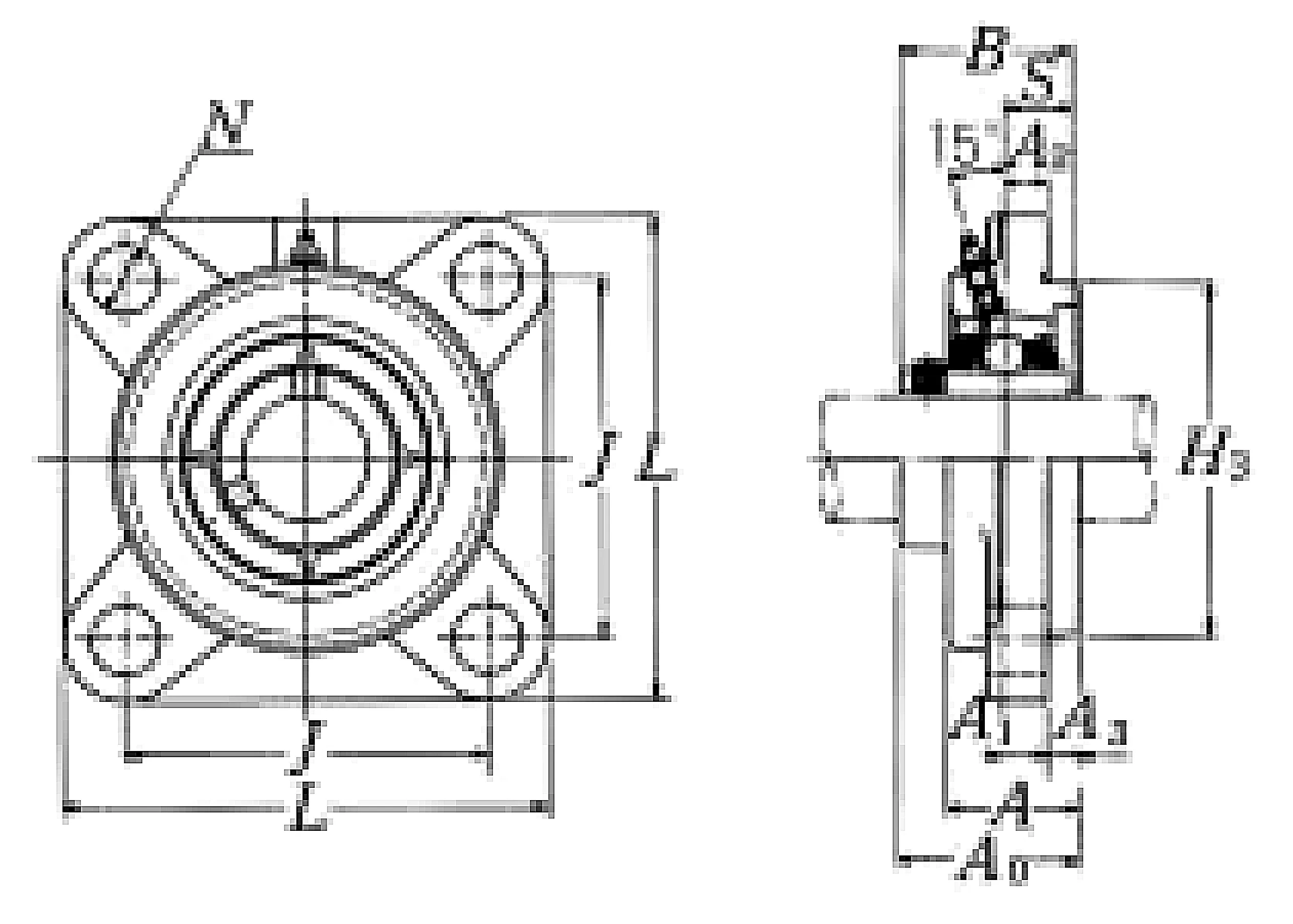

Nominal Dimensions

d	65	mm	Bore diameter
L	208	mm	Overall length
H3	175	mm	Outer diameter of Spigot Joint
J	166	mm	Distance between attachment bolts
A3	18	mm	Height of of Spigot Joint
A2	15	mm	Flange width
A1	22	mm	Flange width
A	58	mm	Base width
A0	78	mm	Overall width
B,B1,B2	75	mm	Width of inner ring
S	30	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	92.5	kN	Basic dynamic load rating
C0r	60	kN	Basic static load rating

Mass

mass

8.6

kg

Mass approx.
