Z-UCF213D1-

Designations

Z-UCF213D1

Included products

Bearing	UC213D1		Bearing
Housing	F213D1		Housing

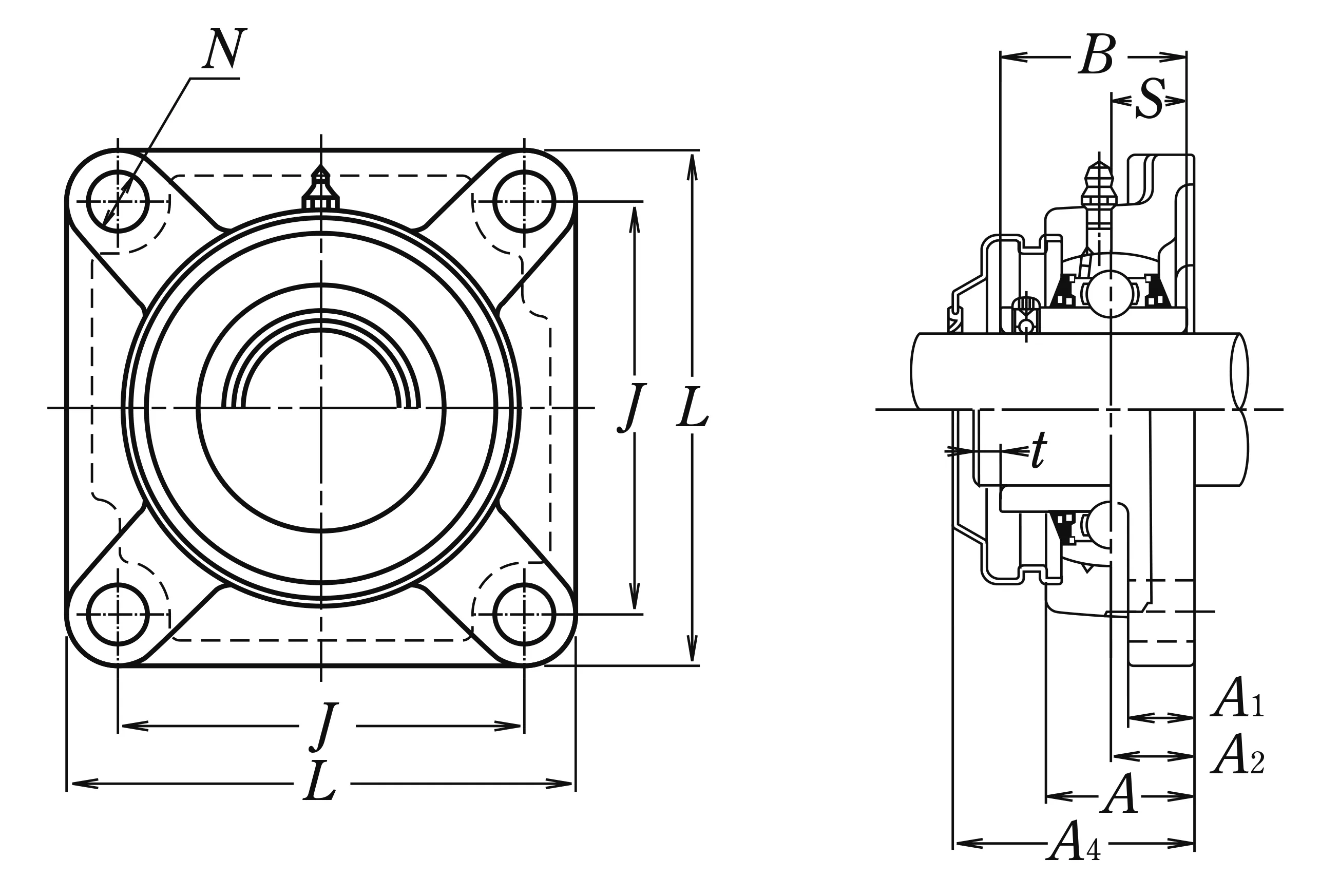

Nominal Dimensions

d	65	mm	Bore diameter
L	187	mm	Overall length
J	149	mm	Distance between attachment bolts
N	19	mm	Diameter of attachment bolt hole
A2	30	mm	Flange width
A1	22	mm	Flange width
A	50	mm	Base width
A4	76	mm	Width including end cover
A0	69.7	mm	Overall width
B,B1,B2	65.1	mm	Width of inner ring
t	4	mm	Clearance
S	25.4	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M16

Bolt size

Basic Load Ratings

Cr	57.5	kN	Basic dynamic load rating
C0r	40	kN	Basic static load rating

Mass

mass

5.6

kg

Mass approx.
