UCFS312D1-

Designations

UCFS312D1

Included products

Bearing	UC312D1		Bearing
Housing	FS312D1		Housing

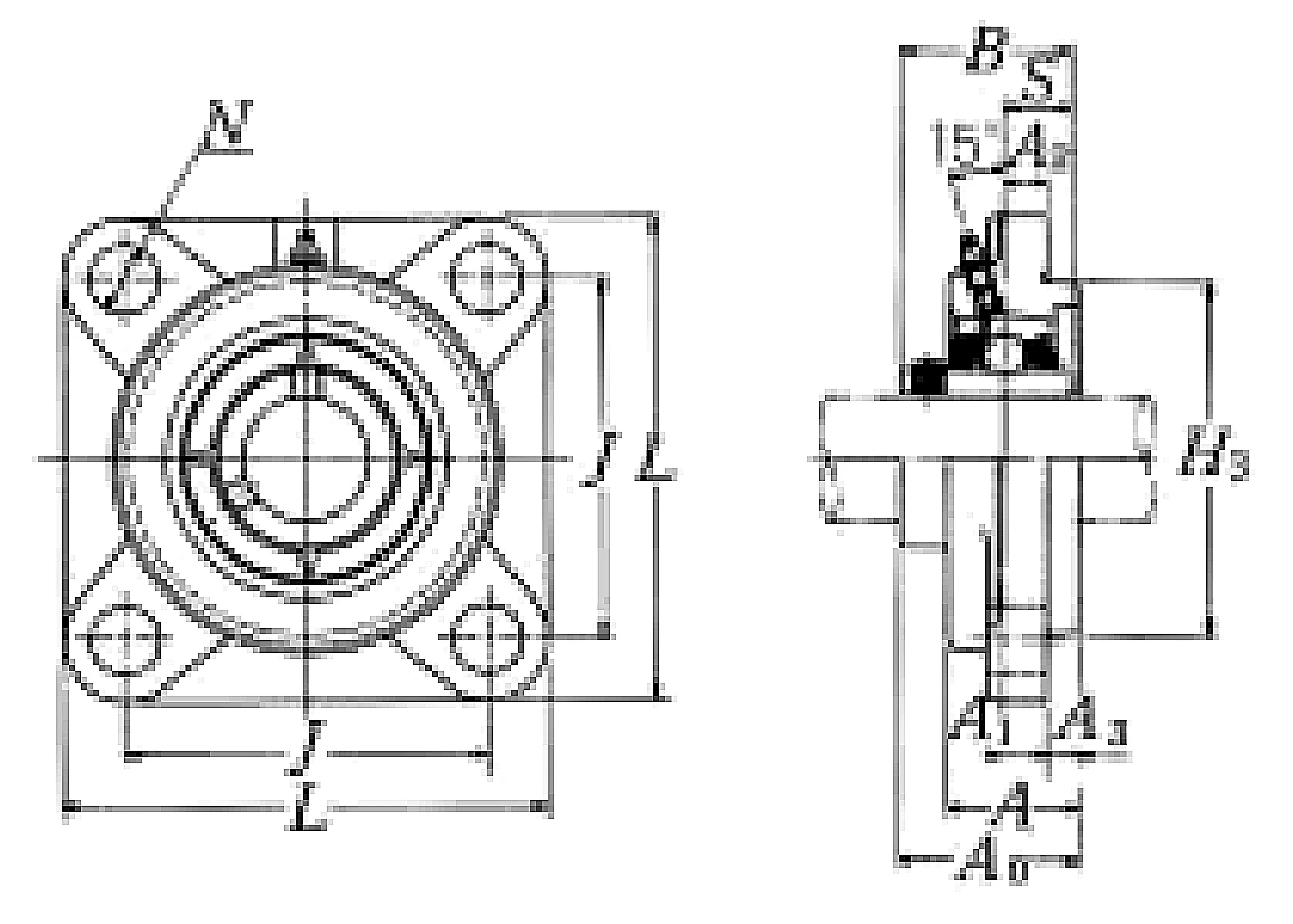

Nominal Dimensions

d	60	mm	Bore diameter
L	195	mm	Overall length
H3	160	mm	Outer diameter of Spigot Joint
J	150	mm	Distance between attachment bolts
A3	14	mm	Height of of Spigot Joint
A2	19	mm	Flange width
A1	22	mm	Flange width
A	56	mm	Base width
A0	78	mm	Overall width
B,B1,B2	71	mm	Width of inner ring
S	26	mm	Distance from Opposite side face of locking device to raceway centre

Mounting information

G

M20

Bolt size

Basic Load Ratings

Cr	82	kN	Basic dynamic load rating
C0r	52	kN	Basic static load rating

Mass

mass

7

kg

Mass approx.
